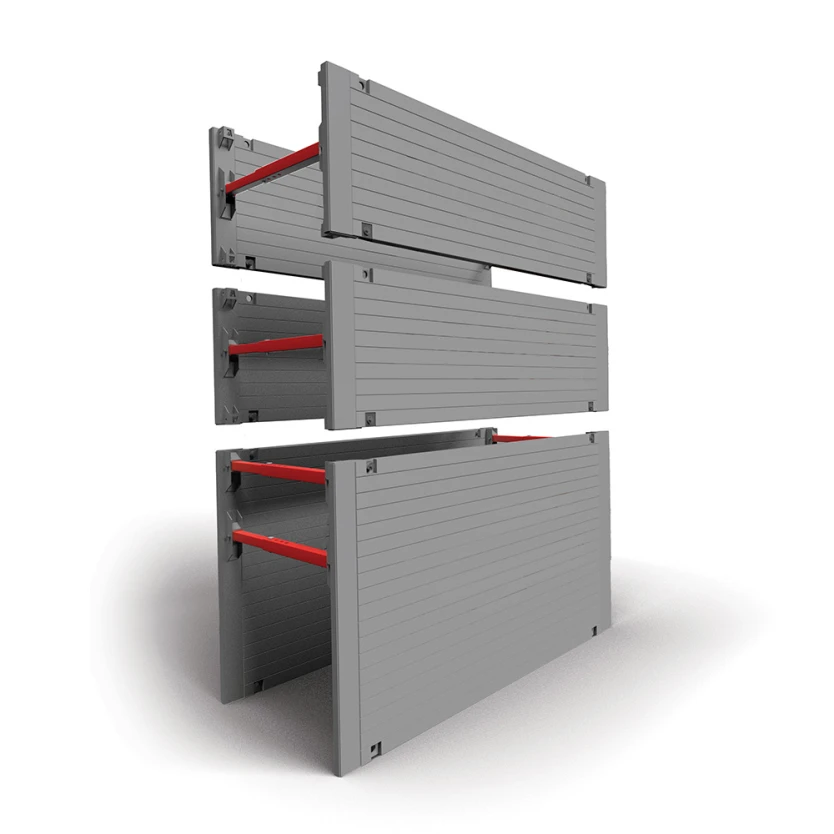

The JV100 Standard Trench Box from Altrad Generation provides a safe working area below ground by supporting excavation side walls throughout the dig, service installation, and backfill stages of a project. The two-sided system accommodates trenches up to 5600mm deep and widths from 690mm to 4500mm, covering the full range of standard utility and civil engineering trench dimensions.
Installed using the Dig and Push method, the JV100 Standard Trench Box works quickly once in position and accepts up to two extension boxes for additional depth where the project demands it. The system is compatible with Altrad Generation Manhole Boxes for combined trench and manhole applications on the same project.
The JV100 Standard Trench Box is available for hire and purchase from Altrad Generation branches across the UK and Ireland.
Key Features and Benefits
Weight: 2100kg
Maximum depth: 5600mm
Width range: 690mm to 4500mm
Installed using the Dig and Push method
Accepts up to two extension boxes for additional depth
Compatible with Altrad Generation Manhole Boxes
Available for hire and purchase
Frequently Asked Questions
Q: What is the JV100 Standard Trench Box used for?
A: The JV100 Standard Trench Box supports the walls of an open excavation, providing a safe working area below ground for operatives carrying out pipe laying, utility installation, and civil engineering work.
Q: What depth and width can the JV100 Standard Trench Box work to?
A: The JV100 Standard Trench Box works to a maximum depth of 5600mm and accommodates widths from 690mm to 4500mm. Up to two extension boxes can be added on top to achieve greater depth where needed.
Q: How is the JV100 Standard Trench Box installed?
A: The JV100 uses the Dig and Push installation method. The excavator digs to the required depth and the box is pushed into position to support the trench walls.
Q: Is the JV100 Standard Trench Box compatible with manhole boxes?
A: Yes. The JV100 Standard Trench Box is compatible with Altrad Generation Manhole Boxes for combined trench and manhole applications.
Q: Is the JV100 Standard Trench Box available for hire?
A: Yes. The JV100 Standard Trench Box is available for hire and purchase from Altrad Generation branches across the UK and Ireland. Contact your nearest branch for availability and pricing.
