More about Rhino Load Deck

Why Choose the Rhino Load Deck?

Fully Self-Supporting

The Rhino Load Deck does not rely on external or party walls for lateral support. Leg Braces are positioned at corners only, keeping access routes clear and open. A 1.3m spacing between legs provides clearance for a pallet truck.

High Safe Working Loads

The Rhino Load Deck is rated to 600 kg/m² at a maximum height of 3m, 300 kg/m² at a maximum height of 3.5m, and 150 kg/m² at a maximum height of 4m. Used as a trestle platform, the system is rated to 600 kg/m² at a maximum height of 2m. Contact Altrad Generation for trestle heights above 2m.

Built-In Edge Protection

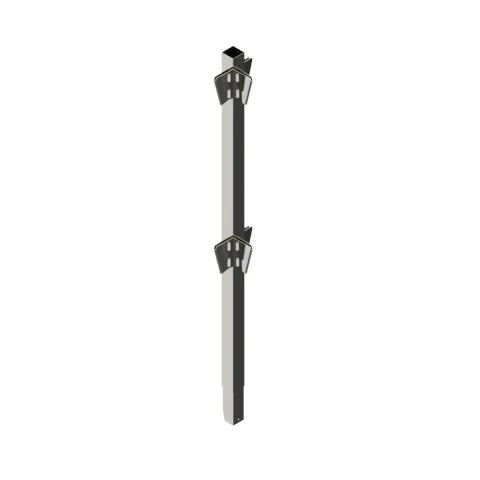

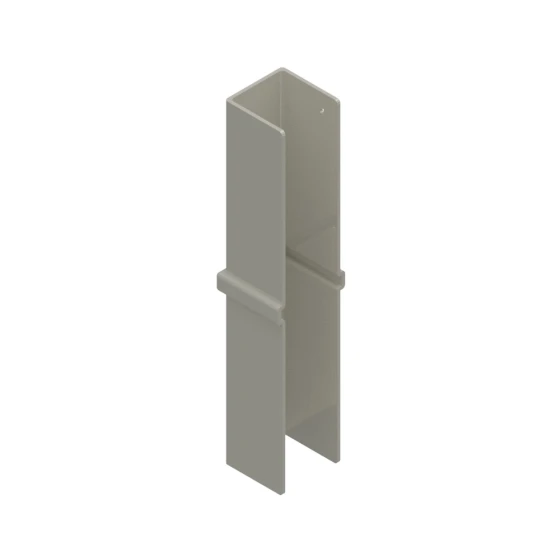

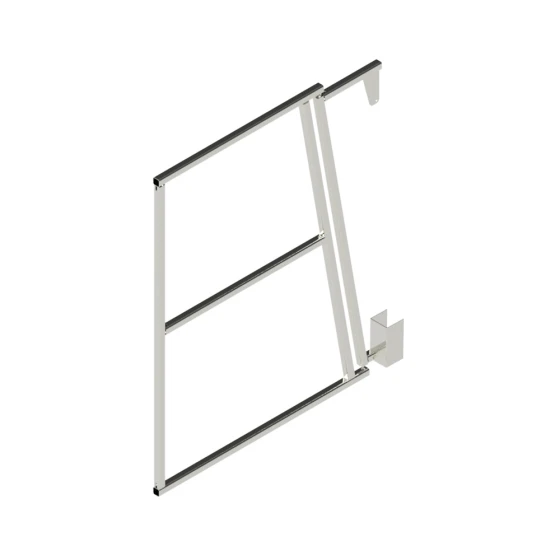

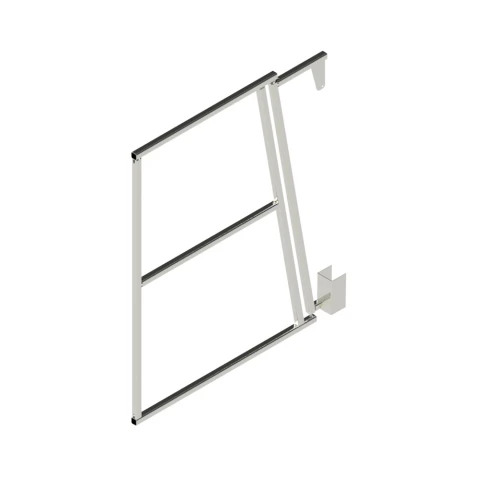

The Leg Joining Support enables the standard leg to be extended to carry a handrail system above the working deck level. Hand Rail Posts insert into the top of the leg to provide fixing brackets for hand rails. The Guard Rail Gate provides controlled access to an exposed edge where a handrail is in use.

Adjustable Platform Heights

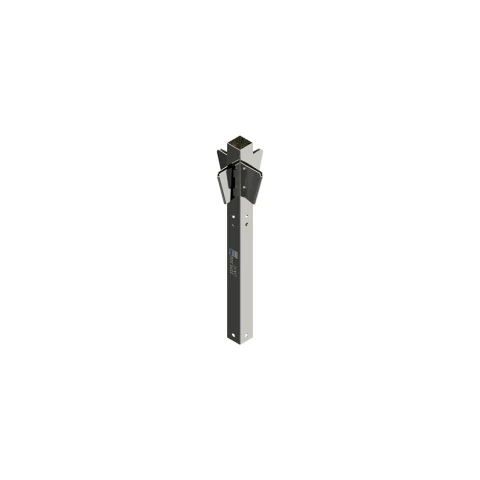

Legs are available in seven variants — 500mm, 1000mm, 1500mm, 1800mm, 2000mm, 1800mm Fixed Base and 2000mm Trestle Leg — enabling working deck heights from 0.5m to 4m.

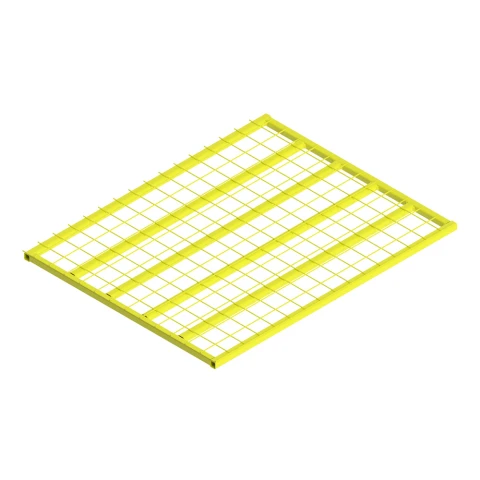

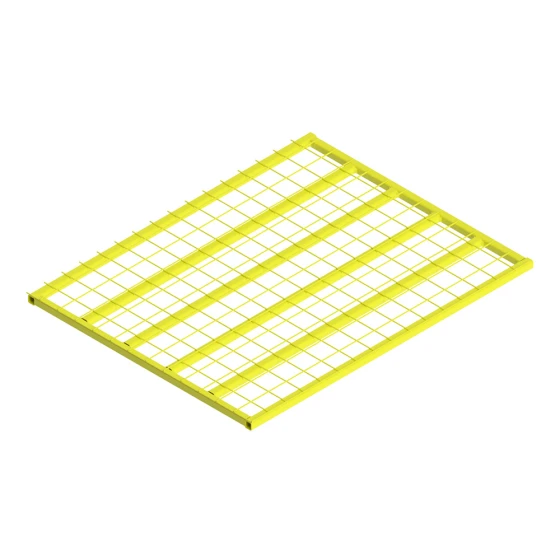

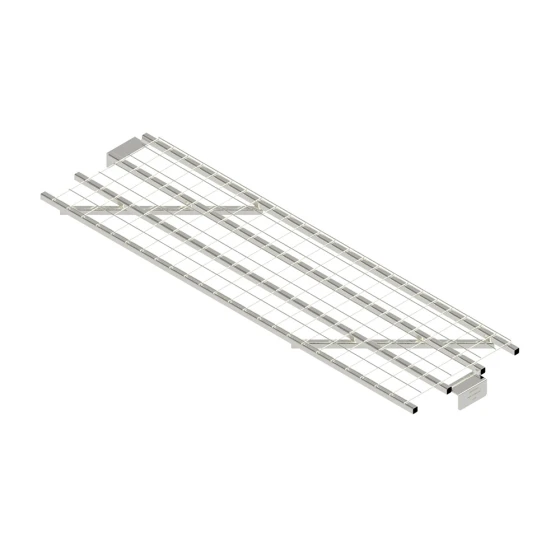

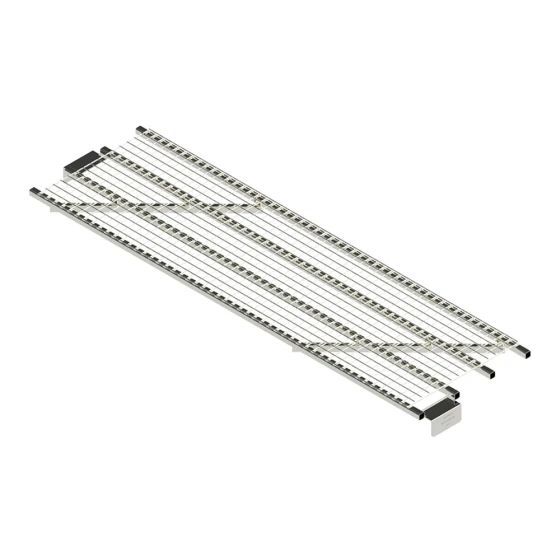

Standard and Heavy Duty Deck Panels

Deck Panels are available in standard and heavy duty variants, in 400mm and 640mm widths, to allow easy configuration of the working platform across any floor layout. Where the floor plan does not conform to the standard panel grid, Make-Up Panels in yellow cover irregular areas, the yellow colour draws attention to the fact that they sit slightly raised.

Usable as a Trestle Platform

The same component set can be erected as a trestle platform for lighter internal access work, rated to 600 kg/m² at a maximum height of 2m. The trestle can be built up to a full working deck as site requirements develop. Contact Altrad Generation for advice on trestle heights above 2m.

Ladder Access

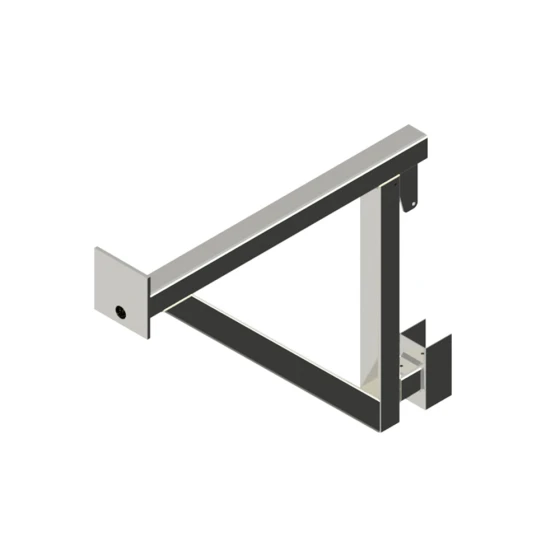

A Ladder Bracket can be fitted to the side of any Rhino Deck structure to allow the safe use of a ladder to reach the working deck.

Compliance and Standards

The Rhino Load Deck has been fully tested and complies with:

- BS EN 12811-1 — Temporary Works Equipment

- BS EN 13374 — Temporary Edge Protection Systems

Frequently Asked Questions

Q: What is the safe working load of the Rhino Load Deck?
A: The Rhino Load Deck platform system is rated to 600 kg/m² at a maximum height of 3m, 300 kg/m² at a maximum height of 3.5m, and 150 kg/m² at a maximum height of 4m. Used as a trestle platform, the system is rated to 600 kg/m² at a maximum height of 2m. Contact Altrad Generation for advice on trestle heights above 2m.

Q: Does the Rhino Load Deck need to be fixed to walls for support?
A: No. The Rhino Load Deck is fully self-supporting and does not rely on external or party walls for lateral support. Leg braces are positioned at corners only, keeping access routes clear and open. A 1.3m spacing between legs provides clearance for a pallet truck.

Q: Can the Rhino Load Deck be used as a trestle platform?
A: Yes. The same component set can be erected as a trestle platform for lighter internal access work, rated to 600 kg/m² at a maximum height of 2m. The trestle can then be built up into a full working deck as site requirements develop. Contact Altrad Generation for advice on trestle heights above 2m.

Altrad Generation supplies the Rhino Load Deck adjustable work platform system for hire and sale across the UK. Whether you need a hop up platform for short-term internal access or a full-height load deck for heavy multi-trade use, our team can advise on the right setup for your project.

Contact us to discuss your requirements, or browse the full Rhino Load Deck range to explore individual components.
