Altrad Generation supplies loading bay gates for hire and sale to trade and construction customers across the UK. A scaffold gate creates a safe, controlled point for lifting and moving materials onto a scaffold platform, stopping workers from falling and keeping the site secure. The range covers tube and fitting gates, Genlok and Genstage system scaffold gates and up and over designs, so you can fit the right scaffold loading bay gates to your project. All loading bay gates are available through Altrad Generation's nationwide branch network.

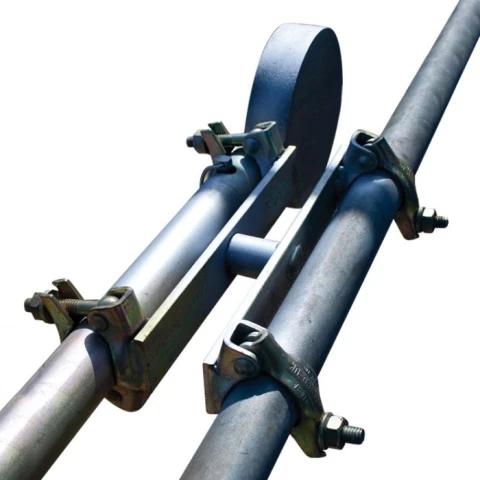

The Standard Gate is a scaffold gate for tube and fitting scaffolds, giving you a secure, counterbalanced barrier across the loading bay. Hinges and weights hold the gate closed so it swings back into place after use, keeping the opening secure between deliveries.

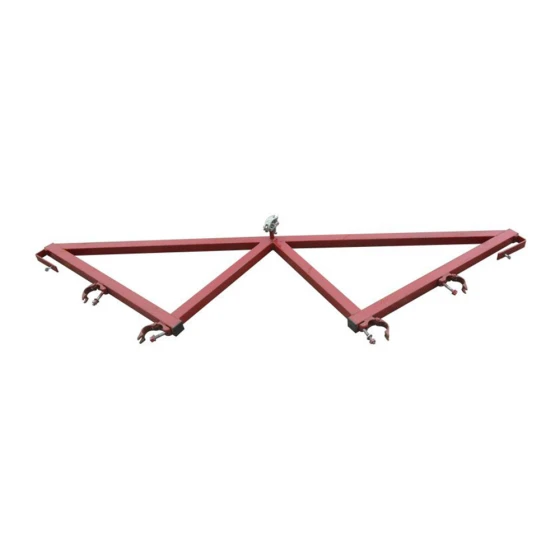

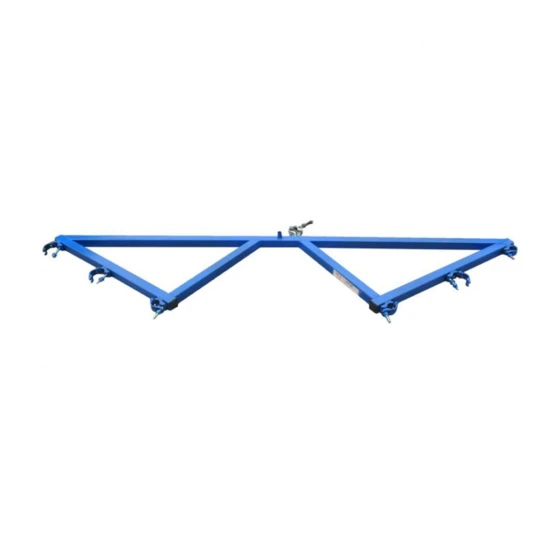

The 'M' Loading Bay Gate is built for tube and fitting scaffolds and operates within a 7 board loading bay, with a height requirement of 1850mm and a loading depth of 1500mm. It has a box section and round tube frame, fully braced with 6mm flat bar, and is sold as gate and arm separately, each weighing 20kg.
The Genlok Multi-Gate is a multi position gate for Genlok system scaffold, giving you safe access to loading bays at 39.9kg.

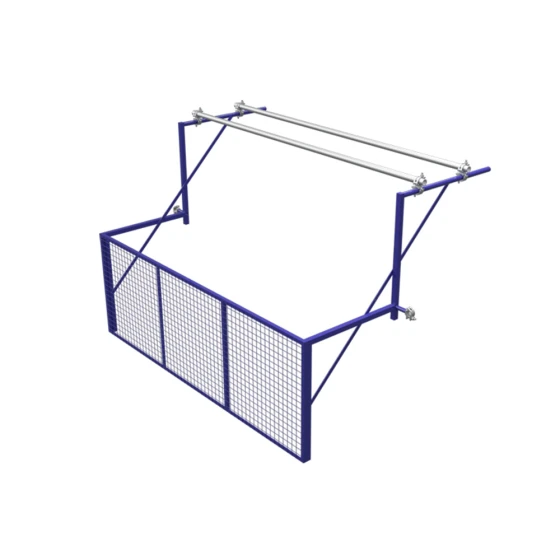

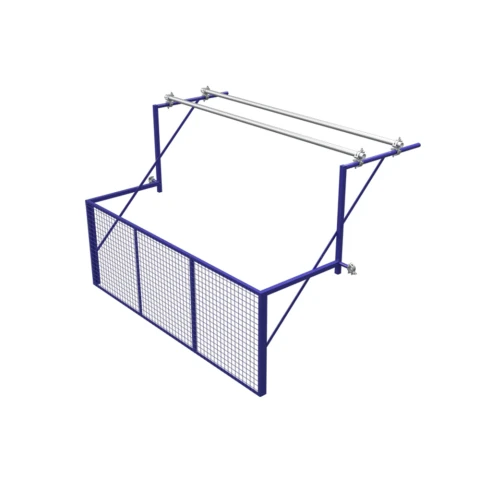

Genlok and Genstage Up & Over Gates
The Genlok Up & Over Gate and Genstage Up & Over Gates open upward so you can deliver pallets straight to the working level, then close back down to secure the loading bay. This keeps the loading bay fully enclosed except for the moment you need to bring materials through.
Contact your local Altrad Generation branch for advice on choosing the right scaffold loading bay gates for your site.
Altrad Generation also supplies a complementary range of Scaffold Fittings, Scaffold Boards and Scaffold Tube, so you can source your scaffold loading bay gates and general scaffolding needs from one supplier.
Frequently Asked Questions
Q. What is a scaffold loading bay gate used for?
A. A scaffold loading bay gate creates a safe, controlled point for lifting and moving materials onto a scaffold platform. It stops workers falling through an open loading bay and prevents unauthorised access, helping you keep your site safe while materials are loaded and unloaded.
Q. What loading bay gates does Altrad Generation supply?
A. Altrad Generation supplies the Standard Gate and 'M' Loading Bay Gate for tube and fitting scaffolds, and the Genlok Multi-Gate, Genlok Up & Over Gate and Genstage Up & Over Gate for system scaffold loading towers. Up and over gates open upward for pallet delivery, while the other gates give you a fixed, secure barrier across the loading bay.
