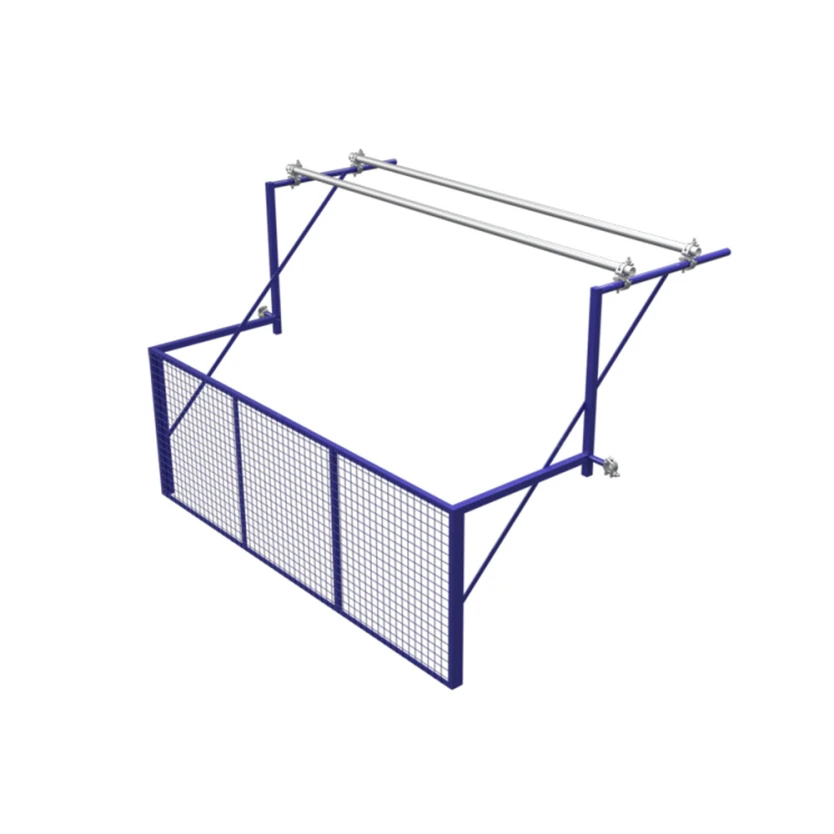

Every loading bay scaffold needs a gate for its opening. The 'M' Loading Bay Gate is one of the options in Altrad Generation's Loading Bay Gates range, built for use with tube and fittings and fitting neatly into a 7 board loading bay.
Rear guardrails must be fitted to comply with TG20 and BS EN 13374, so make sure these are in place before the gate goes into service. The frame itself is built from box section and round tube in mild steel, fully braced with 6mm flat bar.
The gate requires a height of 1850mm, excluding scaffold fittings, and covers a loading depth of 1500mm, so check these dimensions against your scaffold loading bay before you order. It's sold as an arm and a gate separately, and you'll need additional fittings to secure it in place. If you're working with a Genlok system scaffold instead of tube and fittings, the Genlok Up and Over Gate is designed for that setup.
Key Features and Benefits
Fits a 7 board loading bay: Sized to operate within a 7 board loading bay on your scaffold.
Braced box section and round tube frame: Built in mild steel and fully braced with 6mm flat bar.
Works with tube and fittings: Compatible with tube and fittings, so it fits straight into your existing scaffold.
Meets TG20 and BS EN 13374: Complies with these standards once rear guardrails are fitted.
Frequently Asked Questions
Q. What is the 'M' Loading Bay Gate used for?
A. It is a loading bay gate for use with tube and fittings, operating within a 7 board loading bay on your scaffold.
Q. Do I need guardrails with the 'M' Loading Bay Gate?
A. Yes. Rear guardrails must be fitted to comply with TG20 and BS EN 13374, unlike the Standard Gate, which is not TG20 compliant.
Q. What size loading bay does the 'M' Loading Bay Gate fit?
A. It requires a height of 1850mm, excluding scaffold fittings, and covers a loading depth of 1500mm.
Contact your nearest Altrad Generation branch to discuss the 'M' Loading Bay Gate for your project.
