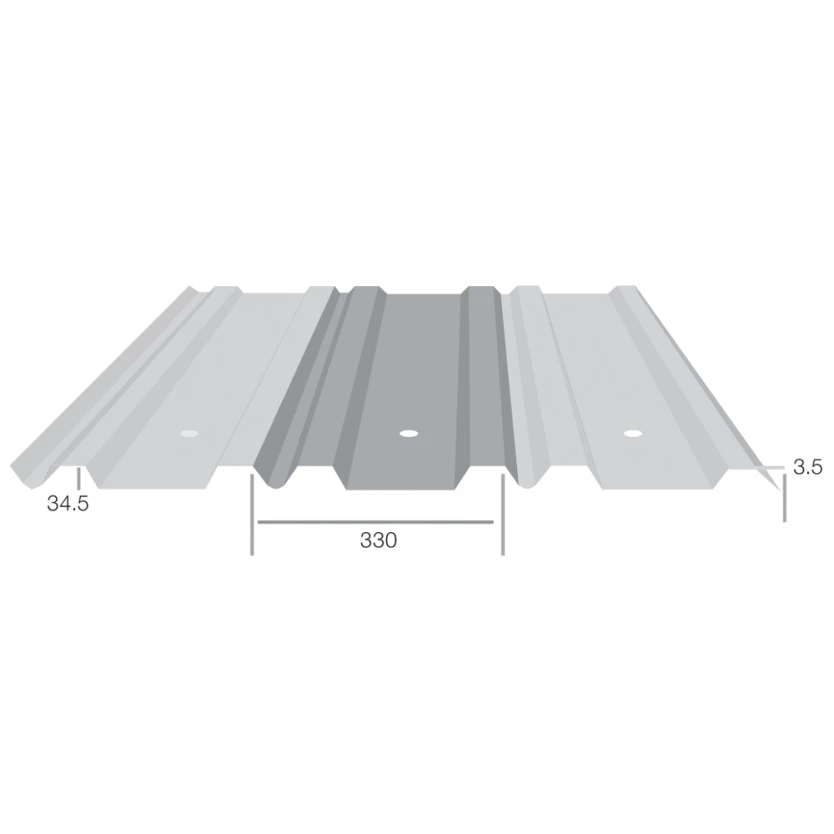

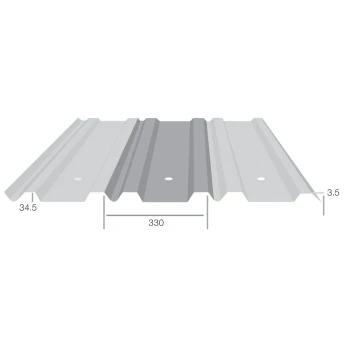

Altrad Generation's Standard Overlapping Trench Sheets are the go-to solution for temporary excavation support on small to medium-scale utility and drainage projects. With an effective width of 330mm and lengths available from 1500mm to 6000mm, these sheets cover the range of trench dimensions common across the UK groundworks sector.
Driven vertically into the ground, the sheets interlock in an overlapping profile to form continuous trench wall support. A galvanised zinc coating provides corrosion resistance for repeated use across multiple projects. The high strength-to-weight ratio makes these sheets practical for site teams to handle and install efficiently.
Standard Overlapping Trench Sheets are compatible with Altrad Generation Driving Caps, Quick Release Pitching Shackles, and Extraction Clamps and are available for hire and purchase from branches across the UK and Ireland.
Key Features and Benefits
Effective width: 330mm
Ten lengths available: 1500mm to 6000mm
Weights: 17.73kg (1500mm) to 70.92kg (6000mm)
Galvanised zinc coating for corrosion resistance and extended service life
High strength-to-weight ratio for efficient site handling
Overlapping profile for continuous trench wall support
Compatible with Driving Caps, Quick Release Pitching Shackles, and Extraction Clamps
Available for hire and purchase
Frequently Asked Questions
Q: What are standard overlapping trench sheets used for?
A: Standard Overlapping Trench Sheets provide temporary support for the walls of small to medium excavations during utility installation, drainage work, and groundworks in shallow to medium-depth trenches.
Q: What lengths are standard overlapping trench sheets available in?
A: Standard Overlapping Trench Sheets are available in ten lengths: 1500mm, 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 4500mm, 5000mm, 5500mm, and 6000mm, with weights ranging from 17.73kg to 70.92kg.
Q: How are standard overlapping trench sheets installed?
A: Sheets are driven vertically into the ground using a driving cap and excavator or sheet pile driver. They overlap to create a continuous line of wall support along the trench.
Q: What accessories are available for standard overlapping trench sheets?
A: Altrad Generation Driving Caps, Quick Release Pitching Shackles, and Extraction Clamps are all compatible with Standard Overlapping Trench Sheets and form part of a complete sheet installation and recovery system.
Q: Are standard overlapping trench sheets available for hire?
A: Yes. Standard Overlapping Trench Sheets are available for hire and purchase from Altrad Generation branches across the UK and Ireland. Contact your nearest branch for availability and pricing.
