JV100 Standard Manhole Box

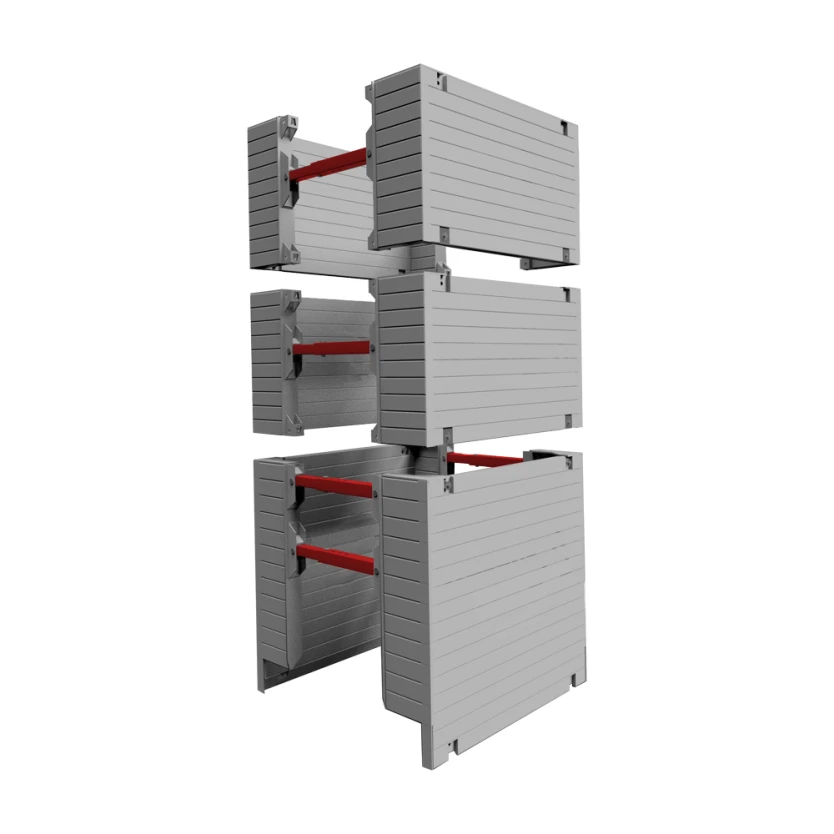

The Manhole Box is a four-sided excavation protection system, which is used whilst installing pre-cast manholes, chambers or tanks.

Read full description

Select from product options

Product

Code

Weight

JV100 Standard Manhole Box 2.5m - Base Unit 2.5m - Top Unit 3m - Base Unit 3m - Top Unit 3.5m - Base Unit 3.5m - Top Unit 4m - Base Unit 4m - Top Unit 4.7m - Base Unit 4.7m - Top Unit
Panel Length (mm) 2500 2500 3000 3000 3500 3500 4000 4000 4700 4700
Panel Height (mm) 2500 1500 2500 1500 2500 1500 2500 1500 2500 1500
Panel Thickness (mm) 100 100 100 100 100 100 100 100 100 100
External Trench Width (mm) 1900-4900 1900-4900 1900-4900 1900-4900 1900-4900 1900-4900 1900-4900 1900-4900 1900-4900 1900-4900
Internal Trench Width (mm) 1700-4700 1700-4700 1700-4700 1700-4700 1700-4700 1700-4700 1700-4700 1700-4700 1700-4700 1700-4700
Weight (kg) 2402 1374 2608 1670 2800 1800 3570 2370 4850 2910
Distance Between Struts (mm) 2220 2220 2720 2720 3220 3220 3780 3780 4490 4490
Clearance Below Strut (mm) 1500 - 1500 - 1500 - 1500 - 1500 -
To Suit Ring Size (mm) 1050 / 1200 / 1350 1050 / 1200 / 1350 1350 / 1500 / 1800 1350 / 1500 / 1800 1800 / 2100 1800 / 2100 2100 / 2400 / 2700 2100 / 2400 / 2700 3000 3000
Permissible SWL (kN/m²) 40 40 40 40 40 40 40 40 40 40
Max Depth (mm) 5300 5300 5300 5300 5300 5300 5300 5300 5300 5300

JV100 Standard Manhole Box

The Manhole Box is a four-sided excavation protection system, which is used whilst installing pre-cast manholes, chambers or tanks. The Manhole Box can be used in conjunction with Trench Boxes. The Manhole Box is quick and easy to install and can be used in trenches up to 5500mm deep. Four different sized panels are available to suit a wide range of needs, these sizes also suit all pre-cast manhole rings. Two additional top boxes can be used with the Manhole Base Box to increase the depth to 5500mm.

KEY FEATURES

  • Four Sided

  • Dig & Push Method Used

  • Additional Extension Boxes

  • Used In Excavations Up To 5500m In Depth

  • Four Different Sizes Available

  • Closing Panels Available

  • Edge Safe Systems Available

  • Ladder Access System Available
