JVB Backhoe Manhole Box

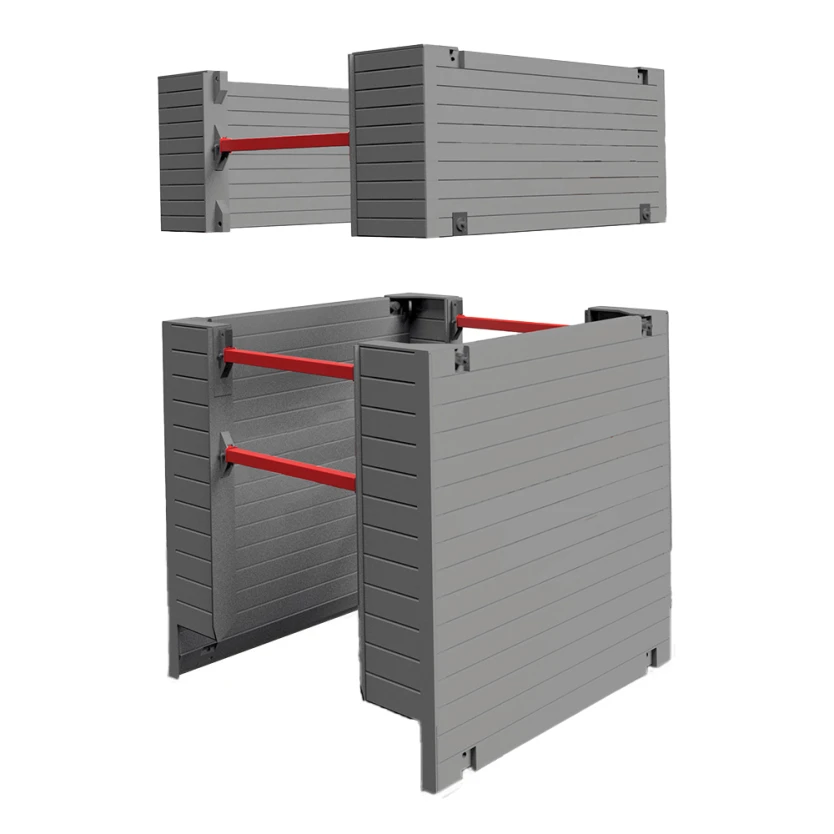

Backhoe Manhole Boxes are lightweight boxes, complete with integral end return panels providing additional support making them ideal for installing pre-cast manhole rings.

Read full description

Select from product options

Product

Code

Weight

JVB Backhoe Manhole Box 2m - Base Unit 2m - Top Unit 2.5m - Base Unit 2.5m - Top Unit 3m - Base Unit 3m - Top Unit
Panel Length (mm) 2000 2000 2500 2500 3000 3000
Panel Height (mm) 2000 1000 2000 1000 2000 1000
Panel Thickness (mm) 60 60 60 60 60 60
External Trench Width (mm) 1690 - 3690 1690 - 3690 1690 - 3690 1690 - 3690 1690 - 3690 1690 - 3690
Internal Trench Width (mm) 1570 - 3570 1570 - 3570 1570 - 3570 1570 - 3570 1570 - 3570 1570 - 3570
Weight (kg) 808 507 875 460 975 508
Distance Between Struts (mm) 1840 1840 2340 2340 2840 2840
Clearance Below Strut (mm) 1200 - 1200 - 1200 -
To Suit Ring Size (mm) 1050 / 1200 1050 / 1200 1050 / 1200 / 1350 1050 / 1200 / 1350 1350 / 1500 / 1800 1350 / 1500 / 1800
Permissible SWL (kN/m²) 20 20 20 20 20 20
Max Depth (mm) 2960 2960 2960 2960 2960 2960

JVB Backhoe Manhole Box

The Backhoe Manhole Box is a four-sided excavation box which provides a safe working area below ground. The Backhoe Manhole Box can sustain earth pressures of 20kN/m2. Users should check that the excavation will impose no greater pressures than this.

Installation is easy through the ‘Dig and Push’ method. This ensures that the side walls of the excavation are supported and minimises the likelihood of an accident. Three panel lengths are available 2000mm, 2500mm or 3000mm. A top box can be used to increase depth to a maximum of 3000mm.

Trench Guard Edge Protection Panels available and Four Way Handling Point to aid safe assembly.

KEY FEATURES

  • Provides safe working area below ground

  • Easily Assembled

  • Dig and Push method

  • Pin and Clip System

  • SWL 20kN/m2

  • Base unit weight 808kg and 975kg

  • 2000mm, 2500mm or 3000mm panel lengths

  • 1200mm clearance between lower strut

  • Panel Thickness 60mm

  • Closing panels available

  • Additional equipment available
