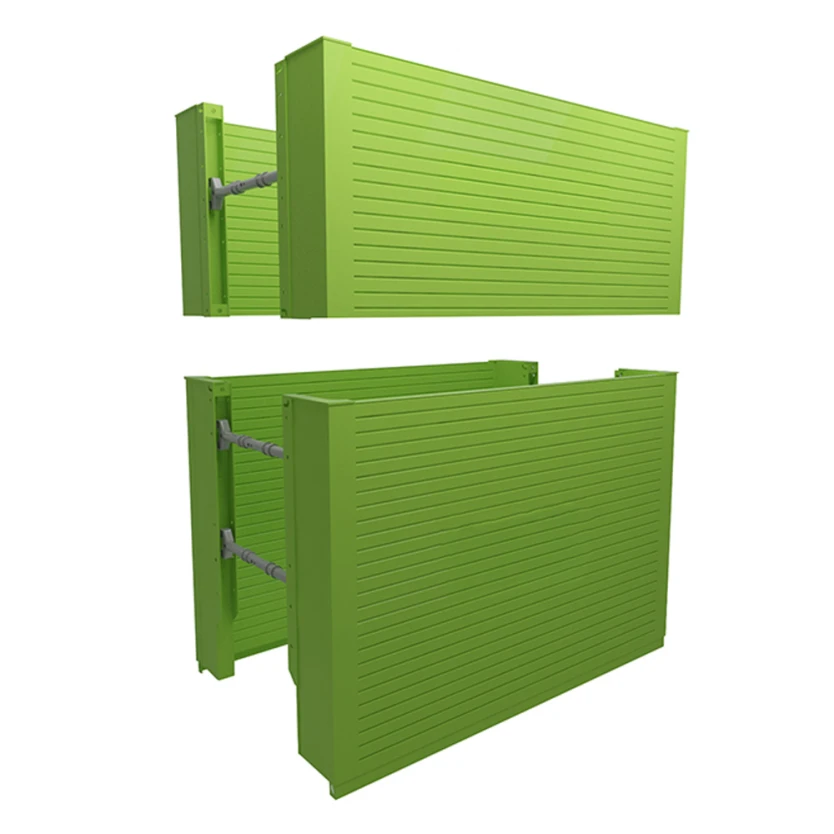

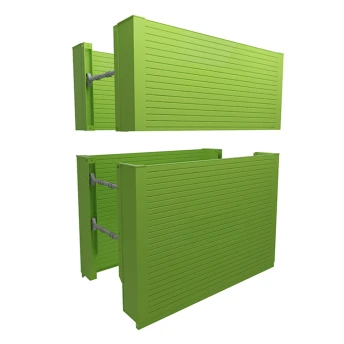

The BV100 Standard Manhole Box is a four-sided mechanical manhole excavation support system, ideal for installing pre-cast concrete manhole rings, small chambers, and tanks where ground movement is non-critical. With six sizes available to suit common pre-cast manhole ring dimensions, the BV100 manhole box delivers a fast, safe, and precise alternative to using sheets and frames in trench runs.
Unlike standard two-sided trench boxes, the BV100 manhole box incorporates integral end return panels, providing additional ground support on all four sides. The system assembles and installs quickly without requiring an operative to enter the unsupported excavation, significantly reducing risk during setup. For manhole box hire operations on deeper excavations, the base module combines with two box tops and a variety of strut types to reach depths up to 5.3m.
A Trench Guard edge protection system is available for use with this product, and four-way handling points aid safe assembly. Bottom cutting edge design allows for dig and push or excavate and place installation, and a Ladder Access System is also available for compliant operative access.
Key Features and Benefits
Four-sided ground support with integral end return panels
Six sizes available to suit common pre-cast manhole ring diameters
Reaches excavation depths up to 5.3m with base module and two top extensions
Dig and push or excavate and place installation method
Assembly and installation without an operative entering unsupported ground
Bottom cutting edge for ease of installation
Four-way handling points for safe slinging and placement
Trench Guard edge protection and Ladder Access System available
Frequently Asked Questions
Q: What is the BV100 Standard Manhole Box used for?
A: The BV100 Manhole Box provides four-sided ground support for operatives installing pre-cast concrete manhole rings, small chambers, or tanks. It acts as an alternative to sheets and frames in combined trench and manhole installations, delivering faster setup and safer working conditions below ground.
Q: How deep do BV100 manhole boxes go?
A: The BV100 Manhole Box reaches depths up to 5.3m by combining the base module with two top extension boxes and appropriate strut types. The configuration depends on the ground pressure and specific excavation requirements.
Q: How is the BV100 manhole box installed?
A: Installation uses either the dig and push or excavate and place technique. The box is designed so no operative needs to enter the unsupported excavation during assembly, keeping your team safe throughout the installation process.
Q: Are BV100 manhole boxes compatible with trench boxes?
A: Yes. The BV100 Manhole Box works in conjunction with BV100 Trench Boxes, allowing you to form a continuous trench system that includes both pipe-laying and manhole installation sections on the same project.
Q: Are BV100 manhole boxes available for hire?
A: Yes. The BV100 Standard Manhole Box is available for hire and sale from Altrad Generation branches across the UK and Ireland. Contact your nearest branch for availability and pricing.
