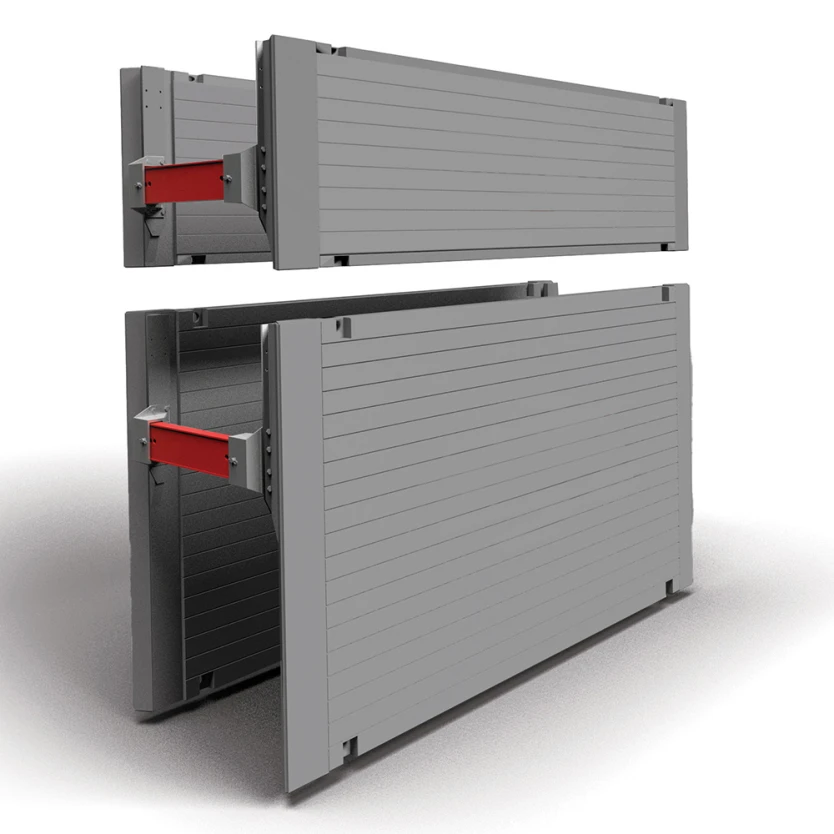

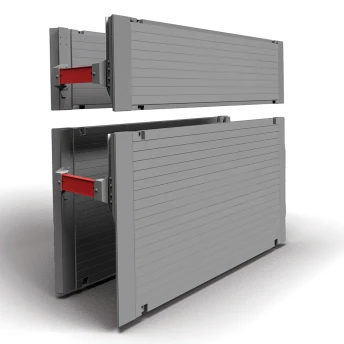

The JV100 Maxi Drag Box from Altrad Generation is an extended drag box designed for long pipe runs where a standard drag box would limit productivity. The larger size reduces the number of repositioning moves required to complete the pipe run, improving output and reducing installation time on longer projects.
Like the JV100 Standard Drag Box, the Maxi uses the Excavate and Drag method: the box is positioned in a pre-dug trench and pulled forward by an excavator after each section of pipe laying is complete. At 2400kg, the Maxi Drag Box is engineered to be lightweight relative to its size, keeping handling and positioning straightforward.
Edge protection and ladder access systems are available as optional additions. The JV100 Maxi is compatible with Altrad Generation Manhole Boxes for combined applications.
Key Features and Benefits
Designed for long pipe runs to reduce repositioning moves and increase productivity
Lightweight construction at 2400kg relative to overall size
Installed using the Excavate and Drag method
For use in self-supporting soil conditions
Edge protection systems available as optional additions
Ladder access systems available as optional additions
Compatible with Altrad Generation Manhole Boxes
Frequently Asked Questions
Q: What is the JV100 Maxi Drag Box used for?
A: The JV100 Maxi Drag Box is designed for long pipe runs where a standard drag box limits productivity. The larger size reduces the number of forward moves required along the trench, improving output on extended pipe laying installations.
Q: How does the Maxi Drag Box differ from the Standard Drag Box?
A: The Maxi Drag Box is physically larger than the Standard Drag Box. The additional size means fewer repositioning moves along a long pipe run, reducing installation time and increasing productivity on longer projects.
Q: How is the JV100 Maxi Drag Box installed?
A: The Maxi Drag Box uses the Excavate and Drag method. The box is positioned in a pre-dug trench and pulled forward by an excavator after each section of pipe laying is complete.
Q: What ground conditions are suitable for the Maxi Drag Box?
A: The JV100 Maxi Drag Box is designed for self-supporting soil conditions. Where ground conditions are unstable, a trench box or manhole brace is the appropriate alternative.
Q: Are edge protection and ladder access available?
A: Yes. Edge protection systems and ladder access systems are available as optional additions for the JV100 Maxi Drag Box. Contact your nearest Altrad Generation branch for full specification details.
Get in Touch with Us
Contact your nearest Altrad Generation branch for expert advice on JV100 Maxi Drag Box hire and purchase. Speak to your local team today.
