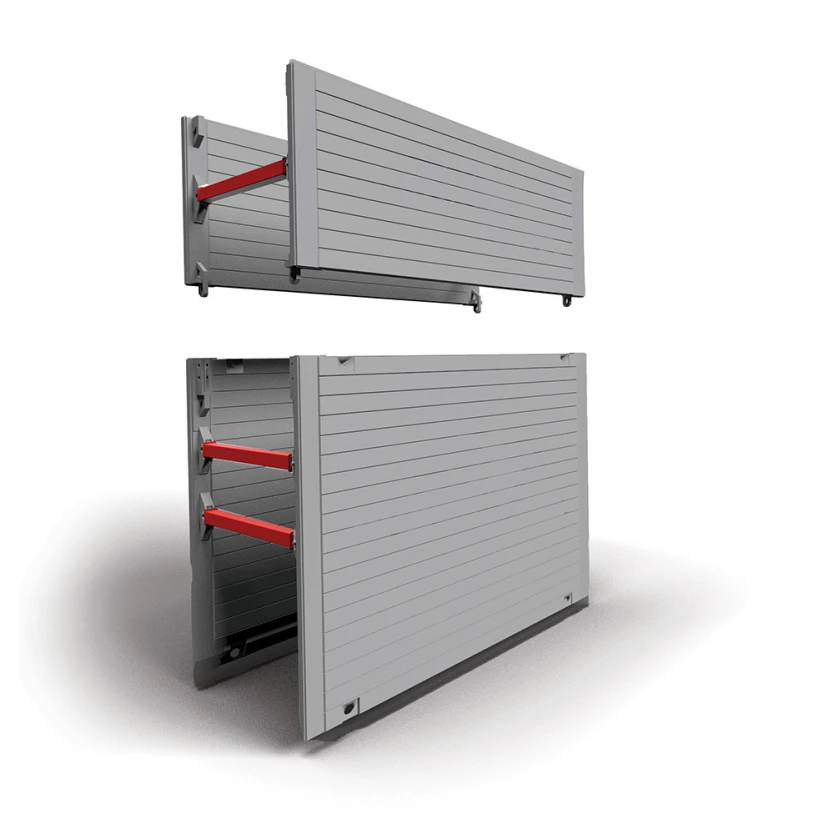

JV100 Backhoe Trench Box

The Backhoe Trench Box is a robust piece of equipment, which acts as a safety shield to provide a safe working area below ground level.

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
JV100 Backhoe Trench Box 730 - - -

The Backhoe Trench Box is a robust piece of equipment, which acts as a safety shield to provide a safe working area below ground level. For use when working on excavations and pipe laying operations. The Backhoe Trench Box can sustain working earth pressures of up to 20kN/m2, users should check that the excavation will not impose greater pressures than this.

Installation is easy through the ‘Dig and Push’ method. This ensures that the side walls of the excavation are supported, and minimises the likelihood of an accident.

The panels are 3000mm long by 2000mm deep with a width range of 720mm to 1720mm which can be altered using telescopic struts these are secured in place using the ‘Pin and Clip’ system, which connects all components. Backhoe box tops can be used to obtain 3000mm in depth.

  • Provides safe working area below ground

  • SWL of 20kN/m2

  • Easily Assembled

  • Dig and Push method

  • 3000m long x 2000m base panels

  • Width range of 720mm to 1720mm

  • Extension tops are 3000mm x 1000mm

  • Maximum working depth 3000mm

  • Pin and ‘R’ Clip method

  • Base unit weight of 730kg

  • 1200mm clearance below lower strut

  • Additional Equipment available

Download brochure

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.

Frequently Bought Together

Gate Weights & Hinges

Gate Weights & Hinges

2 sizes available

Mini Bison Barrier

Mini Bison Barrier

2 sizes available

Handrails System

Handrails System

9 sizes available

Airdeck Charger

Airdeck Charger

2 sizes available

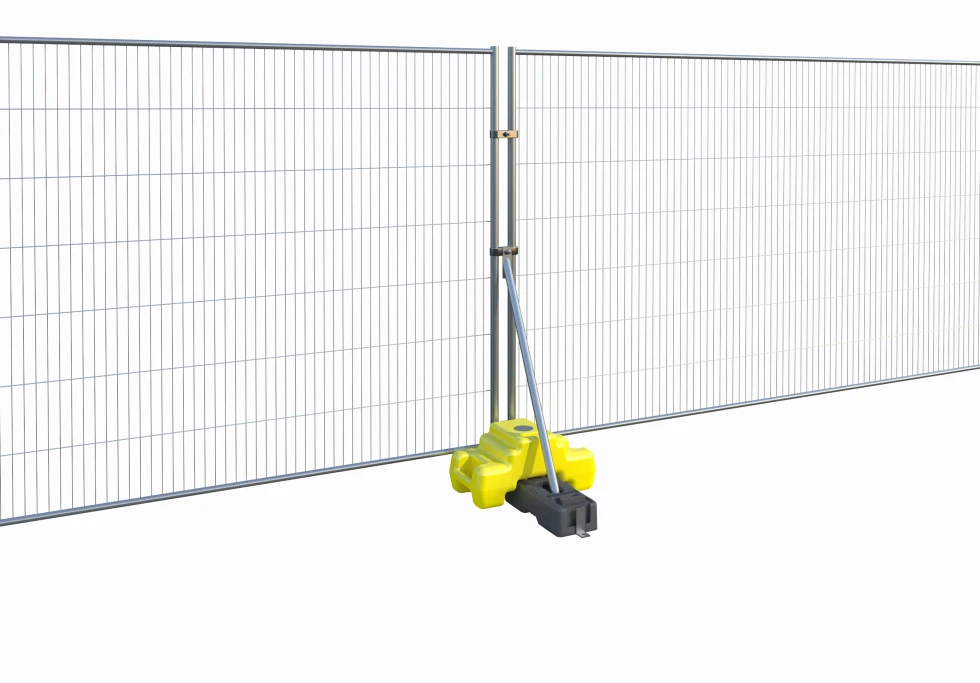

Windbreaker Stabiliser (Small)
