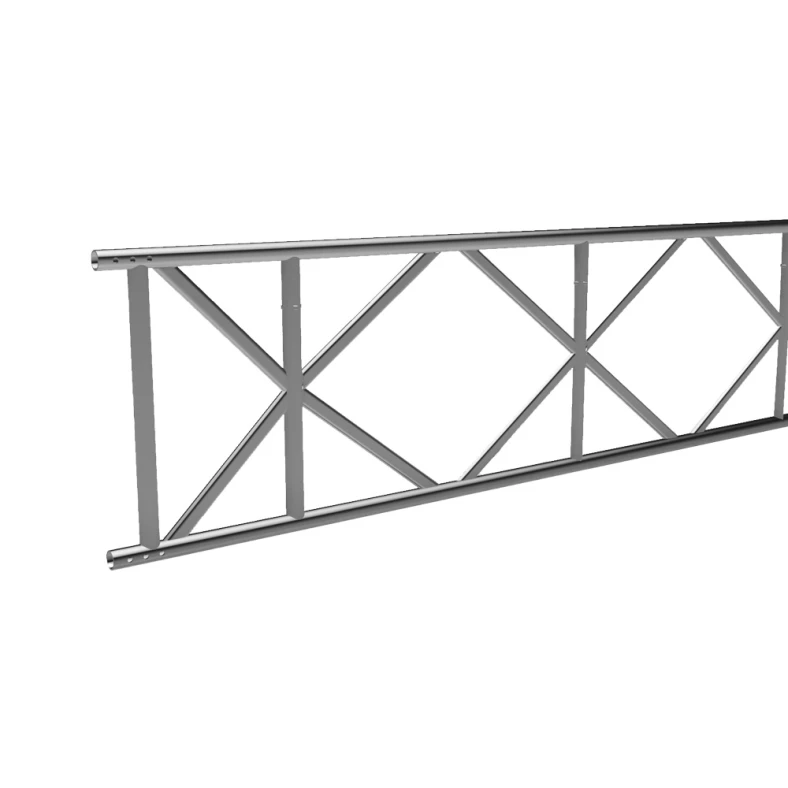

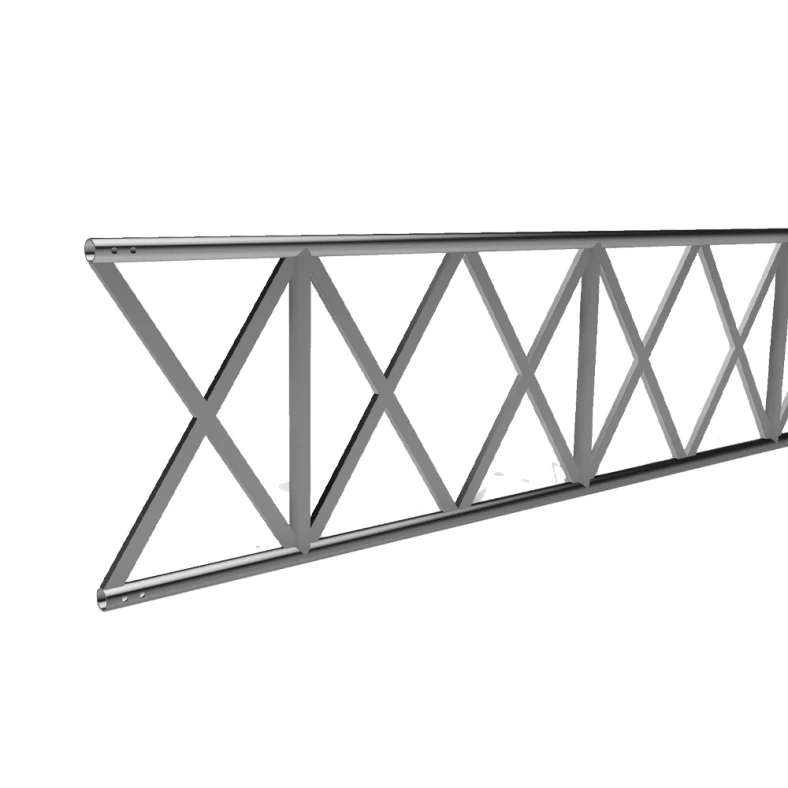

450mm High Capacity Alloy Beam

The Altrad Generation Aluminium 450mm Beam has been the market leader in Europe and the UK for more than 20 years. It provides significant time and cost savings across a whole range of scaffold structures.

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
450mm High Capacity Alloy Beam 4.1m 16.18 - 4100 450
450mm High Capacity Alloy Beam 6.1m 23.94 - 6100 450
450mm High Capacity Alloy Beam 8.1m 31.7 - 8100 450
450mm High Capacity Alloy Beam 60mm Spring Clip 0.025 - - -
450mm High Capacity Alloy Beam 450mm 6 Hole Steel Spigot 2.5 - - -

Suspended or mobile platforms, birdcages, protection-deck bridges or temporary roofs are ideal applications for the Altrad Generation Aluminium 450mm Beam.

The Altrad Generation Aluminium 450mm Beam has been specifically designed to provide the highest possible UDL. The unique design allows connection directly to the node point between the diagonals, achieving maximum loading. This means, in most applications, the lowest number of beams is required. In addition, beams are quickly and simply joined together with straight connectors using fast-action spring clips.

Conforms to BS EN 1999-1-1 Eurocode 9

The use of beams in a load-bearing application should be subject to a structural design.

Permissable Moment – 20.2kNm

Permissible Shear – 11.7kN

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.

Looking for a solution?

Looking for a solution?

Altrad Generation offer the Uni-Roof temporary roofing system. This is the ideal choice and has proven itself with over 25 years of continual use in the industrial, commercial, historic and domestic markets.
