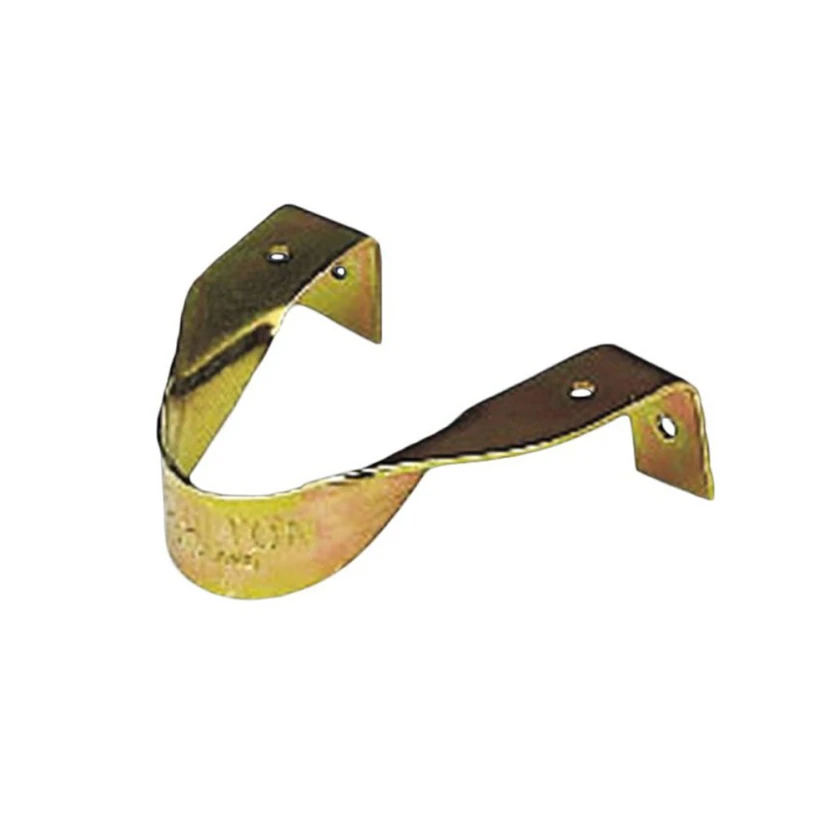

The toe board clip from Altrad Generation secures scaffold board toe boards to scaffold standards at working platform level, meeting the Work at Height Regulations 2005 and BS EN 12811 requirement to prevent materials, tools, and debris from falling from the platform edge.
Available from Altrad Generation as part of the scaffold fittings range, toe board clips work with 3.2mm scaffold tube and 4.0mm scaffold tube and BS 2482-compliant scaffold boards. They form a key part of every compliant working scaffold platform alongside double couplers and guardrail systems.
Toe Board Requirements on Working Platforms
Work at Height Regulations 2005 and BS EN 12811 require toe boards at all open platform edges
Toe boards must be a minimum of 150mm high above the working platform surface
Toe board clips fix boards securely against displacement from foot contact and accidental impact
Fit at each standard adjacent to the toe board run, minimum two clips per board length
Compatible with 3.2mm and 4.0mm scaffold tube and 38mm BS 2482 scaffold boards
Available for hire and sale from Altrad Generation
Compliant Working Platform Components
Build a compliant scaffold working platform with toe board clips, guardrails fixed with double couplers, and scaffold boards meeting BS 2482. For complete scaffolding materials, view scaffold tube, the full scaffold fittings range, and scaffolding tools.
Frequently Asked Questions
Q. What is a toe board clip used for?
A. A toe board clip fixes a toe board (also called a kick board) to the inside face of a scaffold standard at working platform level. Toe boards prevent tools, materials, and debris from being accidentally kicked off the platform edge, protecting workers and the public below.
Q. Are toe boards required by UK regulations?
A. The Work at Height Regulations 2005 and BS EN 12811 require working scaffold platforms to have toe boards fitted at all open edges where there is a risk of materials falling. Toe boards must be at least 150mm high and fixed securely at platform level. Toe board clips provide the standardised fixing for timber scaffold boards used as toe boards.
Q. What board thickness does the toe board clip accommodate?
A. Altrad Generation toe board clips are designed to accommodate standard scaffold board thickness, which is 38mm for BS 2482 compliant scaffold boards. Check the product specification if using non-standard board materials.
Q. What scaffold tube diameter does the toe board clip fit?
A. Toe board clips from Altrad Generation fit 3.2mm and 4.0mm scaffold tube.
Q. How many toe board clips do I need per toe board?
A. Fit toe board clips at each standard adjacent to the toe board run. On standard bay widths, fit a minimum of two clips per toe board length to ensure the board is held flat against the standard and cannot be displaced by foot contact or accidental impact.
Contact your local Altrad Generation branch to discuss toe board clips and scaffold platform fittings, or find your nearest branch using our branch locator.
