RB22 Barrier

This one piece moulded crash barrier is the “Highest Approved Plastic Barrier” system on the UK highways approval list. For optimal site safety, add solid hoarding or mesh panels to increase height.

Crash Tested to 50mph when water filled
MIRA Wind Speed Tested to 78mph when water filled

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
RB22 Barrier 60 500 2000 800
RB22 Fence Topping 8.7 40 1852 1400
RB22 Hoard Topping 25 40 1852 1400

RB22 Barrier

Tested and approved to BS EN1317 – N1 50Mph Crash test, the RB22 Barrier System is designed to offer maximum safety whilst being one of the quickest deployable Barrier Systems on the Market.

Manufactured from prime UV stabilised polyethylene, the RB22 Barrier provides a versatile and flexible one-piece system for easy handling and instalment by your own work force or contractor with no need for crane lifting machinery for any given emergency set-up, offering you huge savings on labour and transport costs. This waterfilled barrier is easy to lock together with a secure pin hinge set on two flat, screw fitted steel plates to form a robust barrier system.

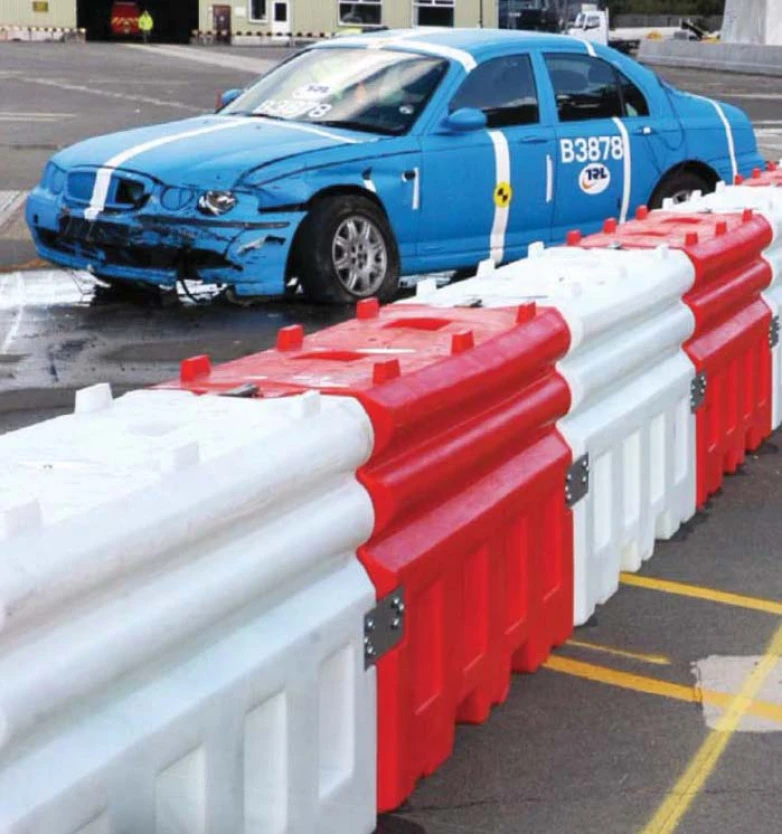

The RB22 is a capable Barrier System that on impact will bring an errant vehicle to a controlled stop. Showcasing incredible durability, this barrier can withstand crashes of up to 50mph and remain reusable after impact if not punctured or damaged.

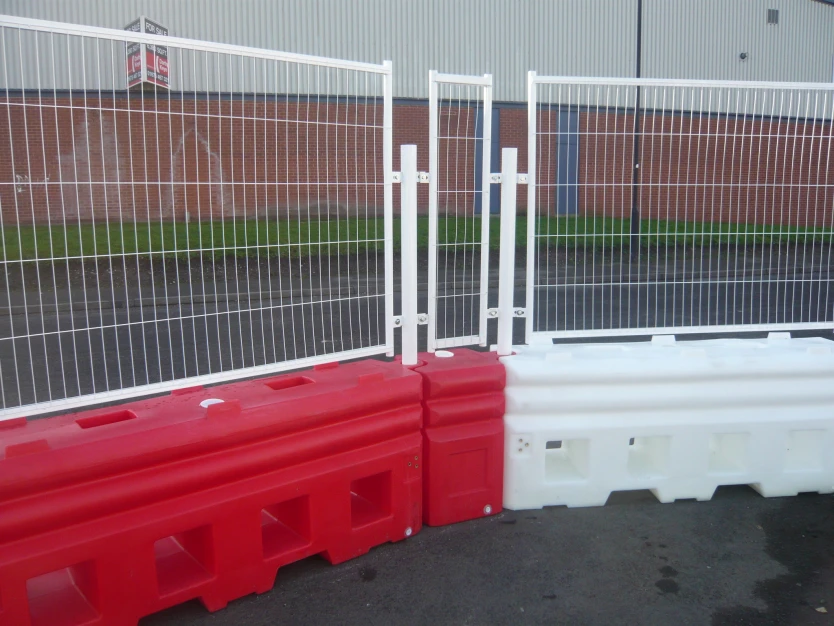

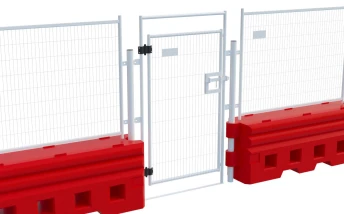

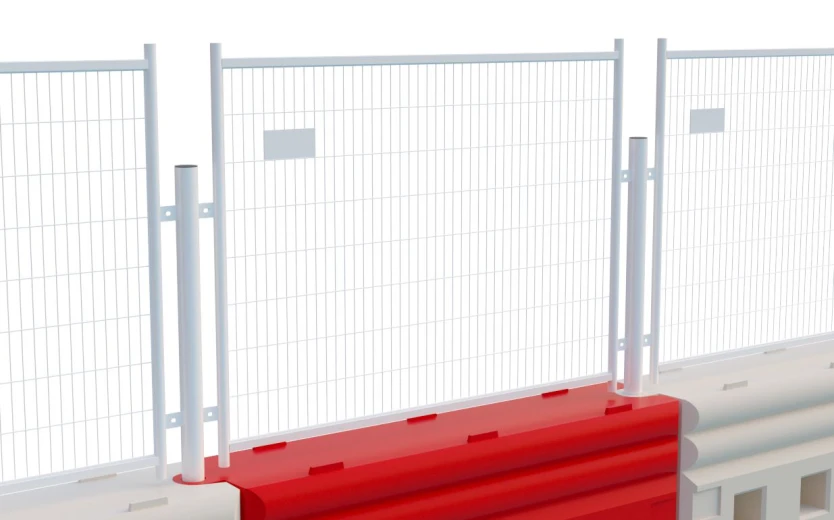

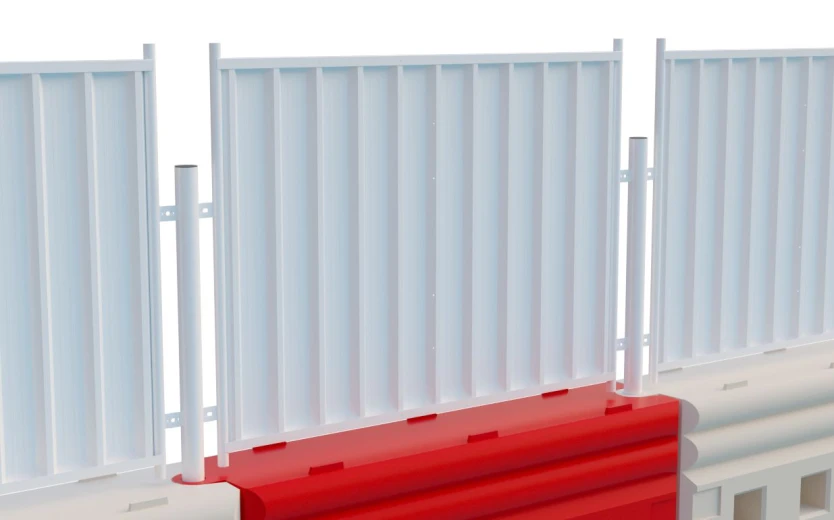

For enhanced security, optional solid hoarding or mesh panels can be added to increase the overall height. Pedestrian and Vehicle gates can also be added to this barrier system.



KEY FEATURES

  • Reusable After Impact: Can be reused if not punctured or damaged, enhancing cost efficiency

  • Lightweight & Easy to Handle: Manufactured from UV stabilized prime polyethylene. No heavy equipment needed for transport, loading, or assembly

  • Forklift Friendly Design: Wide integrated forklift slots for easy manoeuvrability and ease of visibility by driver

  • Secure & Quick Assembly: Pin hinge locking system on steel plates for fast and strong connections



APPLICATIONS

  • Roadworks on heavy traffic roads

  • Traffic management on construction sites

  • Site/asset protection



COMPLEMENTARY PRODUCTS



CONTACT US

For more information on the RB22 Barrier and our range of Traffic Management Barriers, please Contact Your Nearest Branch and speak to one of our experts!

Download brochure

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
