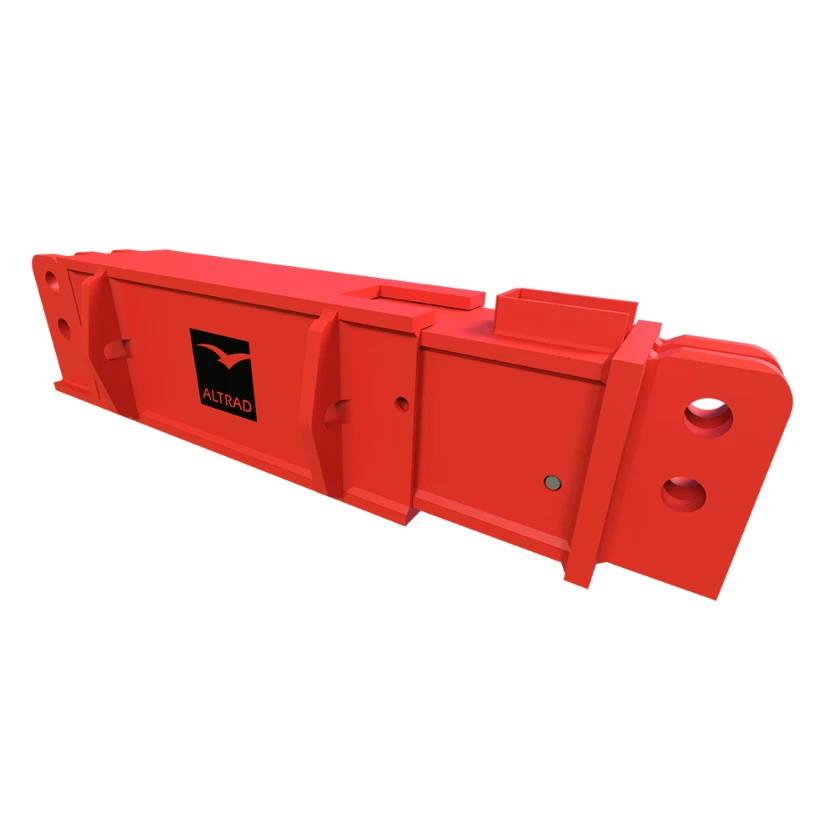

The Altrad Generation Raptor Brace Hydraulic Unit is the central component of the Raptor Brace System, providing the hydraulic force that extends and locks the brace frame against trench sheets or sheet piles. Working with Raptor Brace Beams, the hydraulic unit adjusts the complete bracing assembly to the precise excavation width required, securing the frame without manual adjustment at depth.
Weighing 730kg, the Hydraulic Unit is built for demanding cofferdam, chamber construction, tank installation, and drive pit applications where the bracing system must maintain consistent pressure and structural integrity throughout the project.
The Raptor Brace Hydraulic Unit is available for hire and purchase from Altrad Generation branches across the UK and Ireland.
Key Features and Benefits
Weight: 730kg
Hydraulic extension for precise width adjustment within the excavation
Maintains consistent pressure against trench sheets or sheet piles
Central component of the Raptor Brace System
Compatible with Raptor Brace Beams, Pins, and Crossbrace components
Applications: cofferdams, chamber construction, tank installations, drive pits
Available for hire and purchase
Frequently Asked Questions
Q: What is the Raptor Brace Hydraulic Unit used for?
A: The Raptor Brace Hydraulic Unit provides the hydraulic force that locks the Raptor Brace frame against trench sheets or sheet piles. It works with Raptor Brace Beams to form a complete adjustable bracing system for cofferdams, chambers, tank installations, and drive pits.
Q: How does the hydraulic unit work within the Raptor Brace system?
A: The hydraulic unit extends under pressure to push the brace beams outward against the trench sheets or sheet piles, securing the frame at the correct width. This removes the need for manual adjustment at depth and ensures consistent pressure throughout the project.
Q: What components complete the Raptor Brace system?

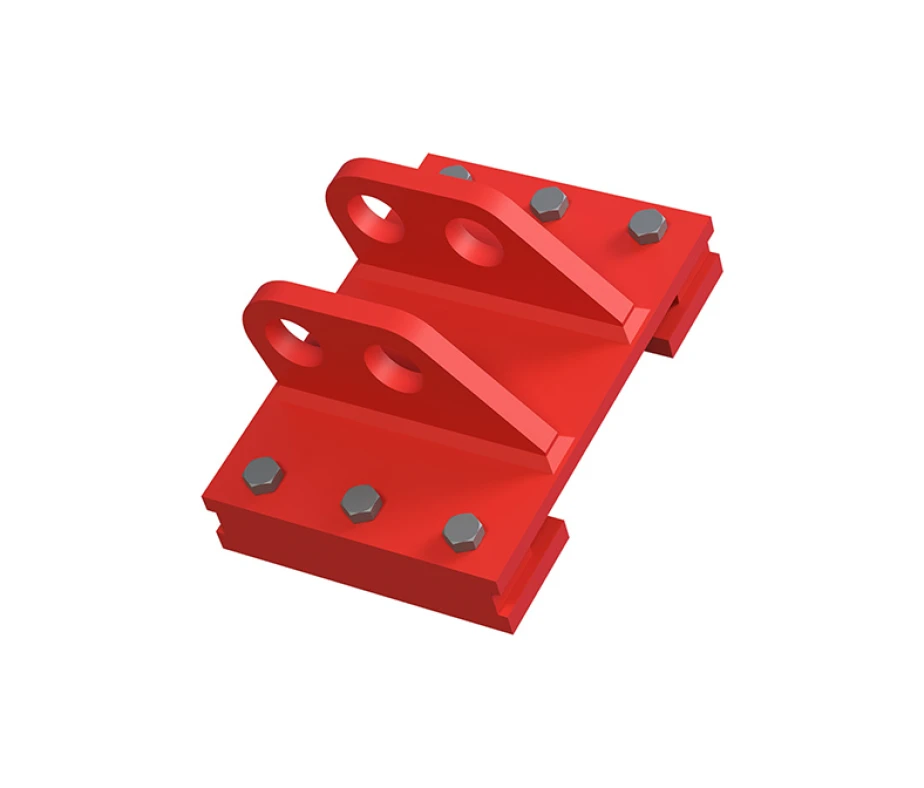

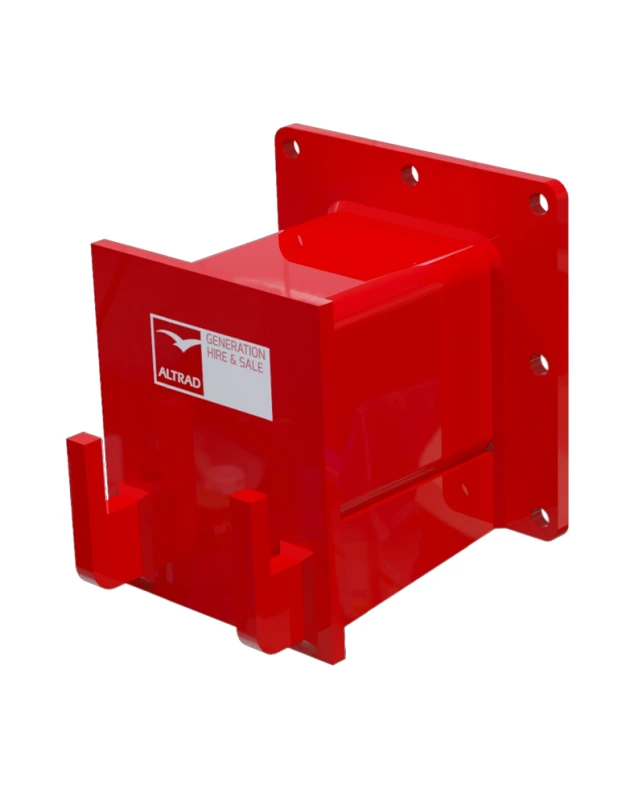

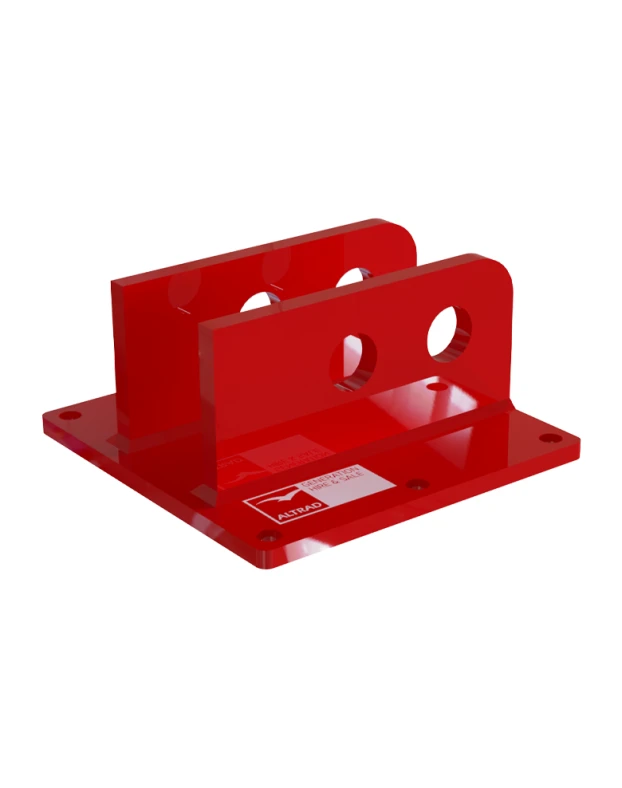

A: The full Raptor Brace system includes the Hydraulic Unit, Beams in five lengths, Pins, Crossbrace Adapters, Endplate Assemblies, and Kneebrace Ends. Contact your nearest Altrad Generation branch for a complete system specification.
Q: What is the weight of the Raptor Brace Hydraulic Unit?
A: The Raptor Brace Hydraulic Unit weighs 730kg. Mechanical lifting equipment is required for safe handling and installation.
Q: Is the Raptor Brace Hydraulic Unit available for hire?
A: Yes. The Raptor Brace Hydraulic Unit is available for hire and purchase from Altrad Generation branches across the UK and Ireland. Contact your nearest branch for availability and pricing.
