JV100 Mini Trench Box

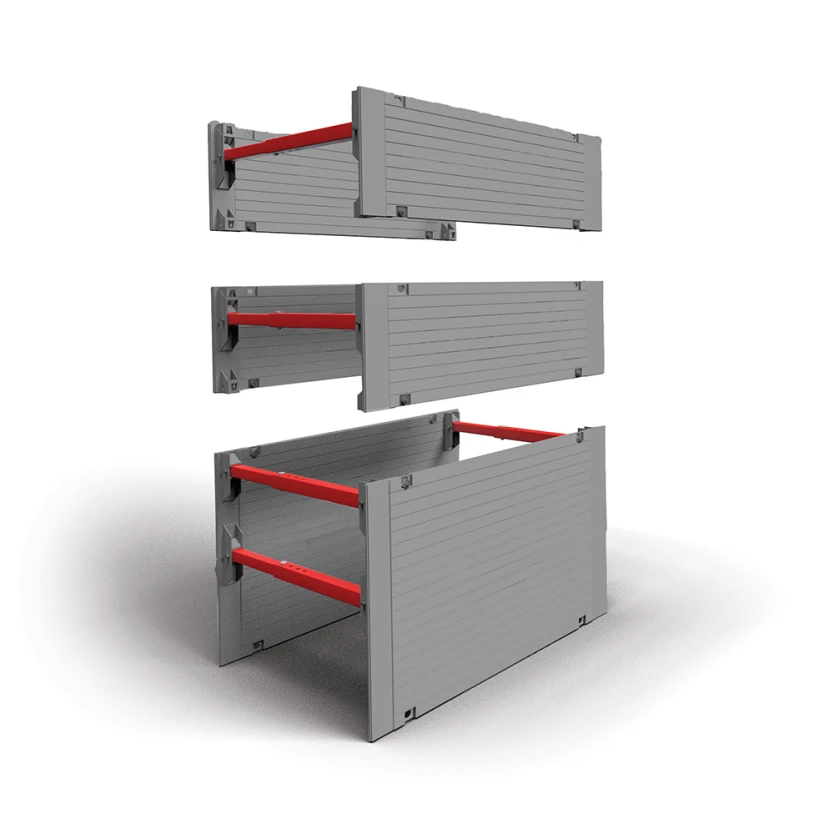

The Mini Trench Box can be used in trenches up to 4000mm deep with widths from 610mm to 3200mm, which can be altered using telescopic struts. Up to two extension boxes can be added on top of the mini Trench Box to achieve additional depth.

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
JV100 Mini Trench Box 1232 - - -

Located between the lightweight Backhoe Boxes and the larger Magnum Boxes, the Mini Trench Box is in a class of its of its own against the competition. Being lighter than all of its competitors however doesn’t mean a compromise on strength. The Mini Trench Box is an ideal choice on site for a lightweight solution as it is more robust than the ultra lightweight Backhoe Boxes.

Used to support sides of excavations, generally used for the laying of utility pipes. Effective down to 4.00m, provided ground pressure does not exceed the Permissible SWL of 25 KN / m2 of this box. ALWAYS enquire about design service if unsure. Manhole Braces are the alternative if it exceeds the SWL and Manhole Braces or Alloy Walers if cross services are an issue on-site.

  • Support Below Ground

  • Quick & Easy To Install

  • Extension Boxes Available To Increase Depth

  • Used In Trenches Up To 4000mm Deep

  • Dig & Push Method Used

  • Pin & Clip System

  • Additional Equipment Available

Download brochure

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
