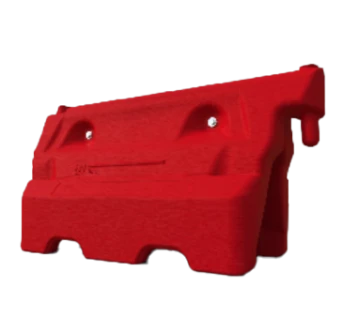

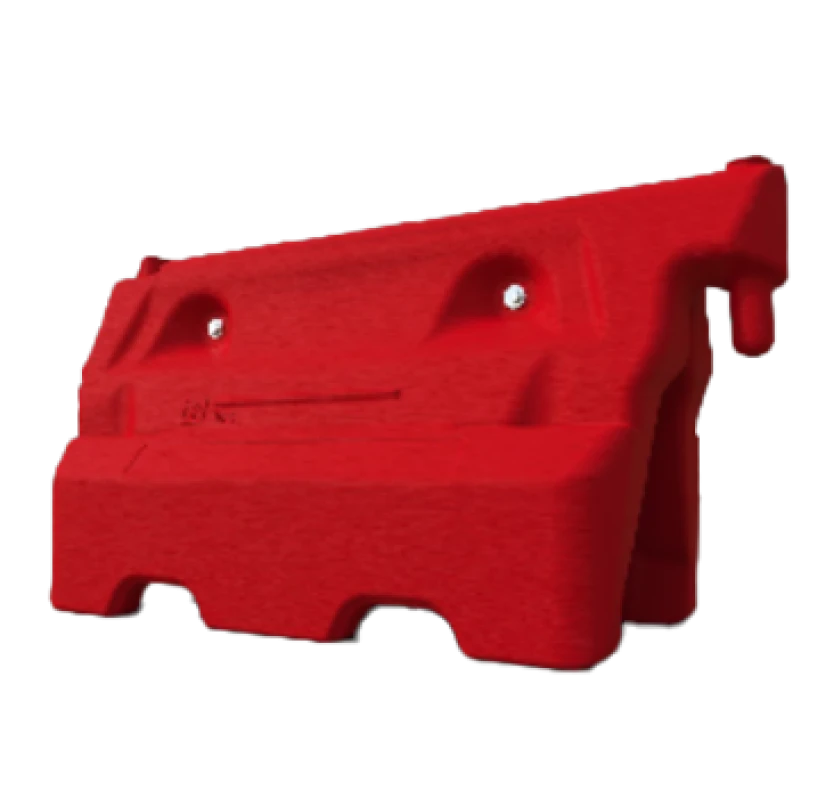

The HOG600 is a water filled road barrier designed for structured Traffic Management on highways, construction sites, utilities projects, and event perimeters. Each unit incorporates a hook and eye system for fast, secure installation and links to form continuous protection lines. With over 55 litres of water capacity and a total filled weight of 60kg, the HOG600 provides reliable stability for both short-term and long-term deployments.
Each half of the HOG600 fills independently via entry points in the top corners. A maximum level line is marked on each side of the barrier to prevent overfilling, and when a light source is placed inside the unit, the water becomes visible, providing a useful visual check. The anti-trip design keeps the base flat against the ground surface to reduce hazards for pedestrians and site operatives.
For sites requiring greater separation height, the Double Top Accessory extends the HOG600 to a total height of 1.6m. The addition connects via the existing hook and eye system without additional brackets, making the height extension as straightforward as the initial setup. Integrated forklift slots are built into each unit for safe and efficient machine handling across all site conditions.
Key Features and Benefits
55-litre water capacity: Fills to over 55 litres on site for a total weight of 60kg, providing solid stability without the need for pre-filled delivery

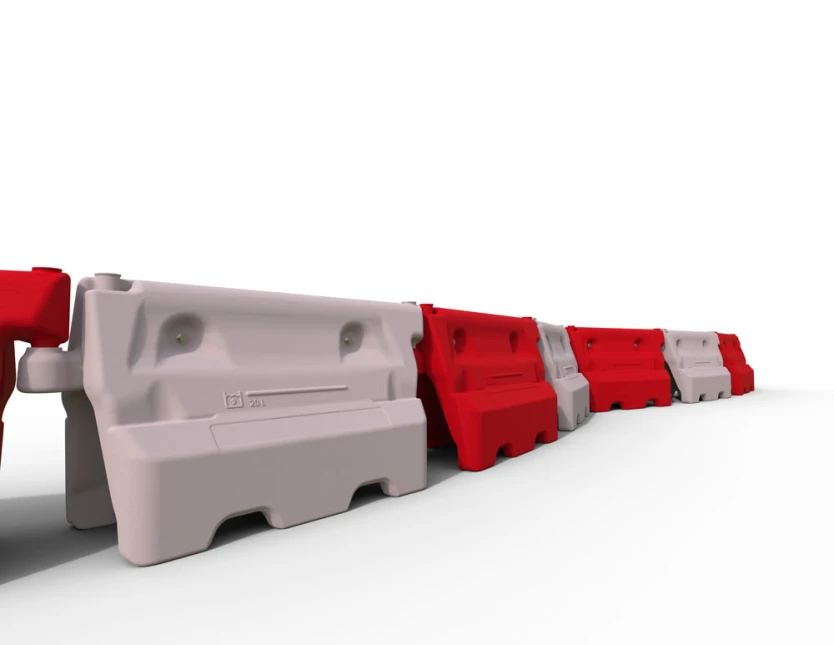

Hook and eye system: Enables fast, secure connection between units to form continuous, aligned barrier lines
Anti-trip design: Flat base profile eliminates trip hazards for pedestrians and site workers at ground level
Forklift-friendly: Integrated slots allow safe machine handling for positioning and repositioning across the site
Double Top compatible: Extends to 1.6m overall height using the existing hook and eye connection, with no additional brackets required
High-visibility colouring: Supplied in red and white as standard for compliance with traffic management visibility requirements
Frequently Asked Questions
Q. How much water does the HOG600 hold and how heavy is it when filled?
A. The HOG600 holds over 55 litres of water and reaches a total filled weight of 60kg. The anti-trip base design keeps the unit stable and flat to the ground surface when filled, making it safe for pedestrians and workers in active traffic management zones. Each half fills independently, giving you control over the ballasting process on site.
Q. Can the HOG600 height be extended?
A. Yes. The Double Top accessory extends the HOG600 to a total height of 1.6m. The Double Top connects via the existing hook and eye system on the main barrier unit, so no additional brackets or fixings are required. This makes the extension straightforward to add and remove as site conditions change, which is useful on projects where separation requirements are reviewed during construction phases.
Q. What applications is the HOG600 suitable for?
A. The HOG600 is suited to Highway Roadworks, construction sites, utilities projects, and event perimeters where a structured, water filled barrier hire solution is needed. Its filled weight and continuous locking system make it appropriate for higher-risk traffic management layouts where lighter barriers would not provide sufficient containment. The forklift-friendly design supports efficient deployment on sites where machine handling is available.
