BVB Backhoe Manhole Box

Backhoe Manhole Boxes are lightweight boxes, complete with integral end return panels providing additional support making them ideal for installing pre-cast manhole rings.

Read full description

Select from product options

Product

Code

Weight

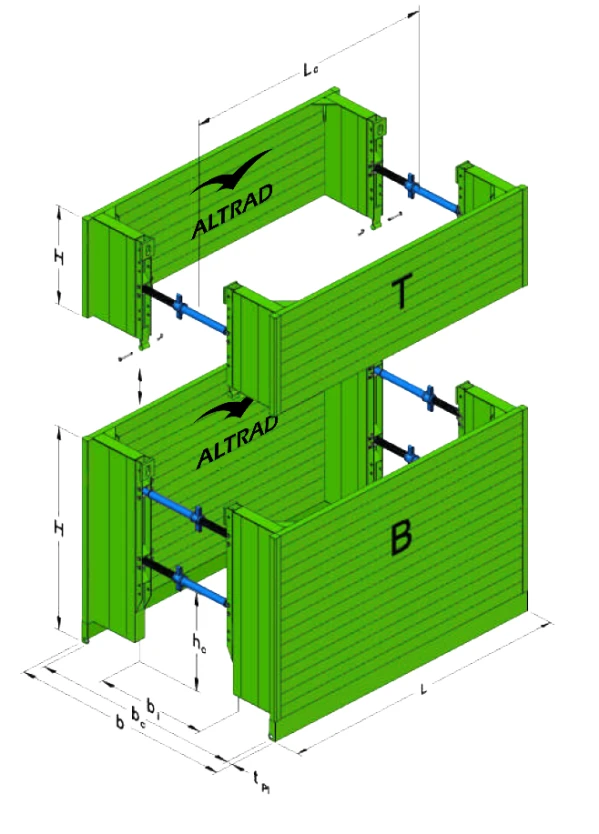

BVB Backhoe Manhole Box 2m - Base Unit 2m - Top Unit 2.5m - Base Unit 2.5m - Top Unit 3m - Base Unit 3m - Top Unit
Panel Length (mm) 2000 2000 2500 2500 3000 3000
Panel Height (mm) 2000 1000 2000 1000 2000 1000
Panel Thickness (mm) 60 60 60 60 60 60
External Trench Width (mm) 1690 - 3690 1690 - 3690 1690 - 3690 1690 - 3690 1690 - 3690 1690 - 3690
Internal Trench Width (mm) 1570 - 3570 1570 - 3570 1570 - 3570 1570 - 3570 1570 - 3570 1570 - 3570
Weight (kg) 1186 711 1326 769 1190 680
Distance Between Struts (mm) 1630 1630 2130 2130 2630 2630
Clearance Below Strut (mm) 980 - 980 - 980 -
Permissible SWL (kN/m²) 38.0 38.0 30.4 30.4 32 32
Max Depth (mm) 2960 2960 2960 2960 2960 2960

BVB Backhoe Manhole Box

Backhoe Manhole Boxes are four-sided excavation boxes with integral end-return panels for added support, ideal for installing pre-cast manhole rings. The “Dig and Push” installation supports side walls and reduces accident risk. Various strut lengths available for non-square configurations and end closure panels to support the open ends of the box. Suitable for excavation depths up to 2.96m Simple pinned strut arrangement. Trench Guard Edge Protection Panels available and Four Way Handling Point to aid safe assembly.

KEY FEATURES

  • Provides safe working area below ground

  • Easily Assembled

  • Dig and Push installation method

  • Pin and Clip System

  • Closing panels available

  • Additional equipment available
