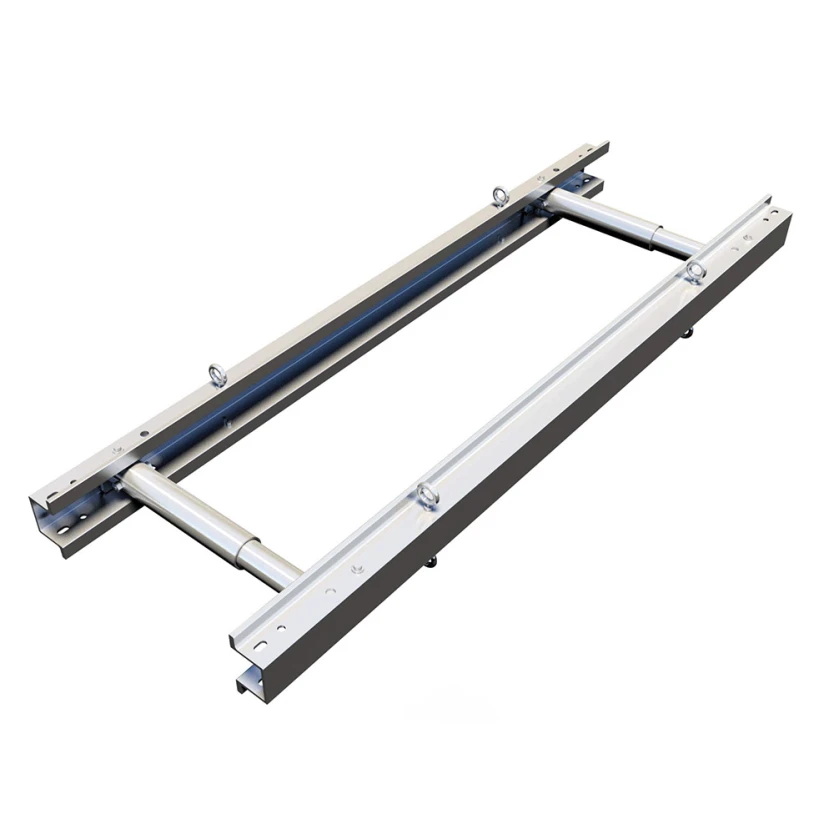

Alloy Waler Rails

Our Aluminium Waler Rails are lightweight, reusable support beams designed for trenching and groundworks. With Safe Working Loads(SWL) up to 58kN/m, they are ideal for use with Trench sheets and Trench boxes in temporary excavation support systems. Available for both hire and sale.

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) SWL (kN/m)
Alloy Waler Rails 2000mm 21 180 24.6
Alloy Waler Rails 2500mm 26 180 24.6
Alloy Waler Rails 3000mm 31 180 24.6
Alloy Waler Rails 4000mm 41 180 24.6
Alloy Waler Rails 5000mm 52 180 24.6

Alloy Waler Rails

Our Alloy Waler Rails also known as Aluminium Walers are high-strength, lightweight hydraulic Waler System used in trenching and groundworks to provide horizontal support and load distribution across Trench Sheets. Constructed from durable aluminium alloy, these walers are significantly easier to handle than steel alternatives, making them ideal for manual assembly and fast site setup. With rail lengths ranging from 2m to 5m, they offer Safe Working Loads (SWL) from 58kN/m to 4.9kN/m depending on span and configuration.

Each waler rail features integrated lifting eyes, allowing safe installation using standard lifting chains. Rails are connected via hydraulic struts and waler end bearers, which can be adjusted to accommodate varying trench widths. This modular system is compatible with Trench Sheets and can also be used in conjunction with Trench Boxes and Hanging Chains for complete trench wall support.

Whether you're working on utility installations, drainage infrastructure, or foundation excavations, our Alloy Walers provide a reliable, reusable, and safety-compliant solution for temporary ground support.

KEY FEATURES AND BENEFITS

  • Aluminium construction – lightweight and corrosion-resistant

  • Lengths available: 2m, 2.5m, 3m, 4m, 5m

  • Safe Working Loads:

    • 2m rail – 58.0kN/m

    • 2.5m rail – 24.0kN/m

    • 3m rail – 16.0kN/m

    • 4m rail – 8.2kN/m

    • 5m rail – 4.9kN/m

  • Compatible with Powershore hydraulic struts and end bearers

  • Supplied with lifting points for safe slinging

  • Stackable for efficient transport and storage

  • Designed for use with Trench Sheets, Groundwork Boxes, and restraint systems

APPLICATIONS

  • Horizontal load distribution in trenching and groundworks

  • Support frames in conjunction with trench sheets

  • Used in modular shoring systems and temporary works

  • Civil engineering, drainage, utilities, and infrastructure projects

  • Compatible with Trench Boxes for staged excavation safety

RELATED PRODUCTS

We also offer a range of:

WHY CHOOSE ALTRAD GENERATION?

For decades, we at Altrad Generation have built our reputation as the UK's leading Groundworks solution supplier by delivering reliable, industry-compliant products and services. We understand that every project is unique, which is why we manufacture our Alloy Waler Rails to the highest industry standards, using premium materials and advanced engineering.  When you choose Altrad Generation, you're choosing a partner trusted by professionals across the UK.

FREQUENTLY ASKED QUESTIONS

What are alloy waler rails used for?

  • Alloy walers provide horizontal support and spread lateral earth pressures in trench walls. They are commonly used with Trench Sheets and Boxes to stabilise excavations during trenching and groundworks.

What is the benefit of aluminium walers over steel ones?

  • Aluminium walers are lighter, easier to handle manually, and faster to install, making them ideal for teams prioritising site safety and efficiency. Despite the lower weight, they offer excellent strength and corrosion resistance.

Are alloy waler rails compatible with trench boxes?

GET IN TOUCH WITH US

Need help choosing the right Alloy Waler Rails for your project? Contact your local Altrad Generation branch today for expert advice, quality products, and competitive pricing.
