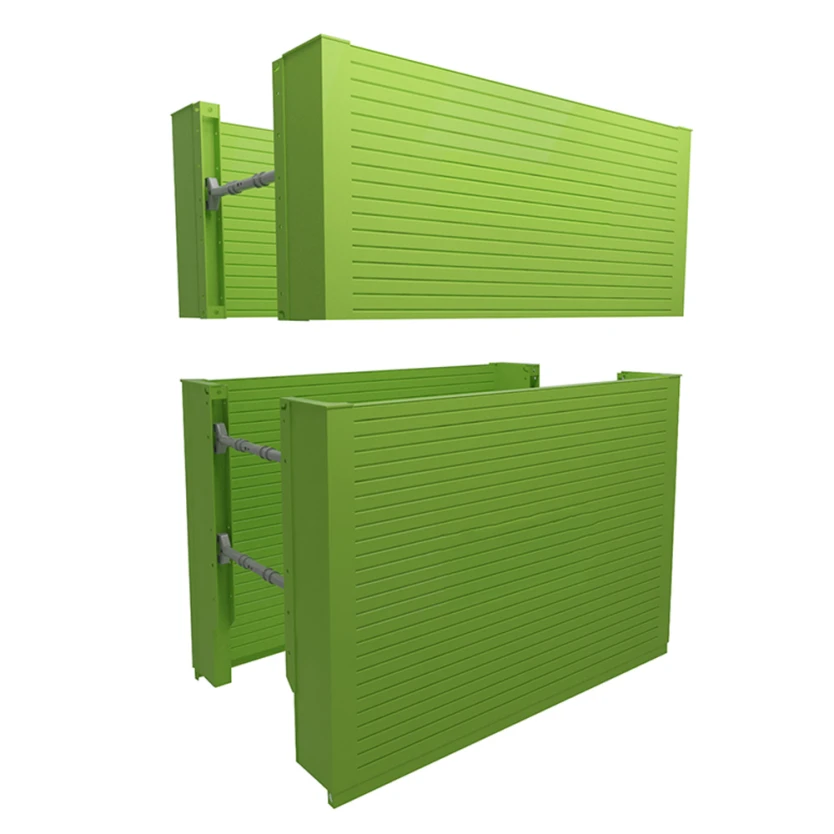

BV100 Backhoe Trench Box

The Backhoe Trench Box is a lightweight Trench Box designed for inner city shoring jobs.

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
BV100 Backhoe Trench Box 374 - - -

The Backhoe Trench Box is a lightweight Trench Box designed for inner city shoring jobs. Used to support sides of excavations, generally used for the laying of small diameter utility pipes such as gas, water, telecoms or power cables. Designed for use with smaller machines such as 180’ excavators and rubber tyred excavators. Lightweight alternative to Standard & Mini Trench Boxes when lifting capacity is an issue on site. Effective down to 3.00m, provided ground pressure does not exceed the Permissible SWL of 19.40 kN/m2 for this box.

Download brochure

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
