More about Scaffold Q Clamps

At Altrad Generation, we provide high-performance Q-Clamps, also known as Key Clamp fittings, are designed for robust and reliable connections in scaffolding and industrial applications. We understand the need for durable and secure fittings, which is why our Q Clamps are engineered to meet the demanding requirements of construction and industrial projects. As a leading UK supplier, we offer a comprehensive range of Q-Clamps, ensuring you find the right product for your specific needs.

What are Q Clamps?

Q-Clamps or Key Clamps are engineered as high-strength tube and pipe fittings, offering a versatile and efficient solution for creating secure connections without the need for welding. Unlike standard scaffold clamps, our Q-Clamps are designed for demanding applications, providing exceptional durability and reliability. They are ideal for creating robust structures in scaffolding, railings, and various industrial settings.

Types of Q-Clamps

The range covers a wide variety of connection types and tube sizes. The following are the main types available.

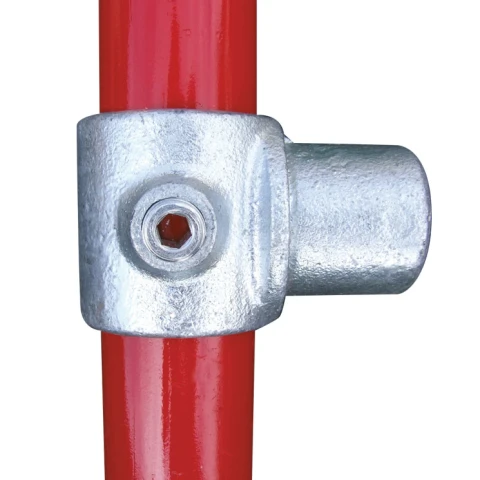

Tee fittings include the Short Tee (101-4) and Long Tee (104-4) for standard branch connections, the Three Way Through (116-4) which provides a three-socket through connection, and the Adjustable Tee (129-4) for adjustable angle tee connections.

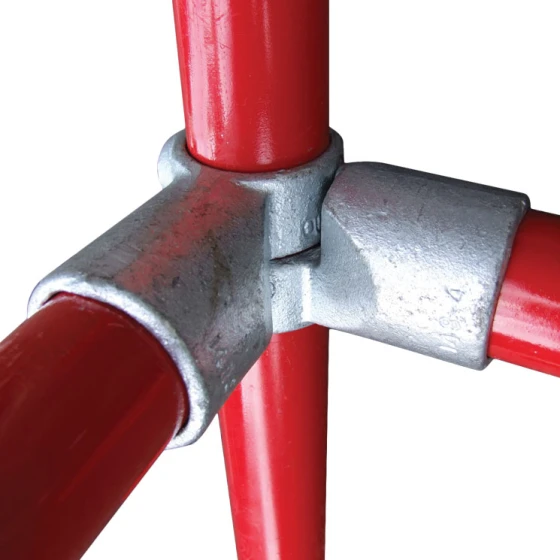

Elbow and corner fittings include the 90 Degree 2-Way Elbow (125-4) for standard right-angle corners, the Acute Angle Elbow (123-4) which covers connections between 40 and 70 degrees, the 3-Way 90 Degree Elbow (128-4) for three-socket elbow joints, and the 2-Way Corner Inline fitting (127-4).

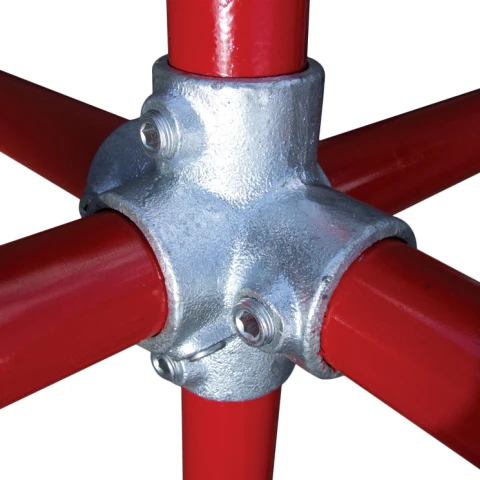

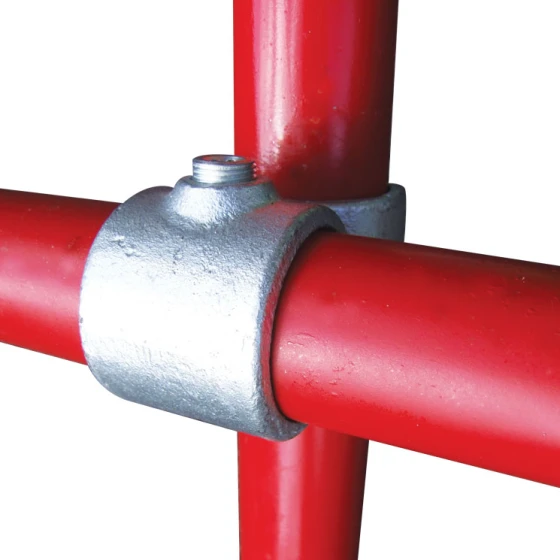

Cross fittings include the 4-Way Cross (126-4), the Adjustable Cross (130-4), and the 2 Socket Cross (119-4) to suit different cross-connection requirements.

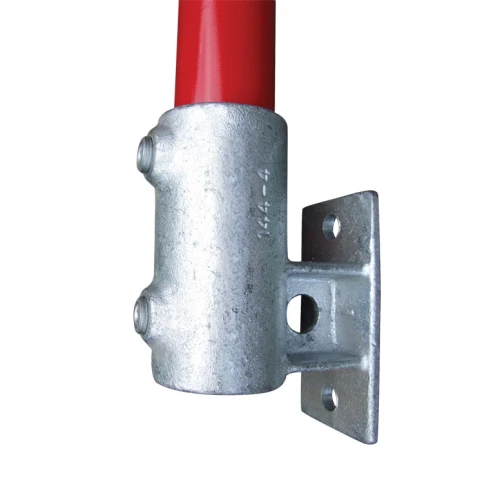

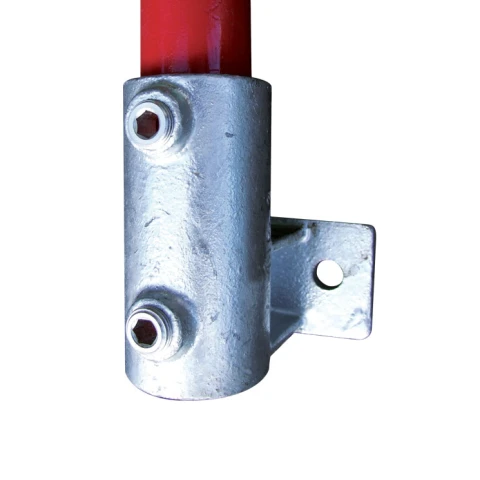

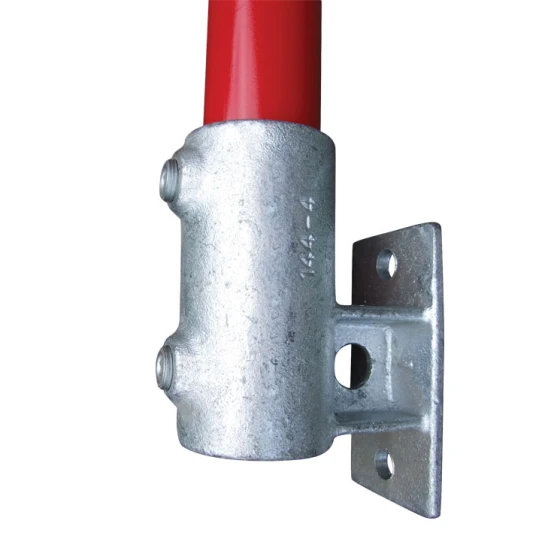

Wall and floor fixings include the Wall Plate (131-4) for mounting tube to a wall or surface, the Base Plate Flange (132-4) for floor-mounted posts, and the Stop End (133-4) for capping tube run ends.

Browse the full Q-Clamp range online or contact your nearest branch. Altrad Generation has 30+ UK branches and can supply scaffold clamps nationwide.

Q Clamp Applications

Q-Clamps are galvanised key clamp tube fittings that connect scaffold tubes without welding. You can use them to build handrail systems, guardrails, industrial racking, and structural tubular frameworks. They are manufactured from galvanised blackheart malleable iron to BS6681, Grade B32-10, with galvanising to BS EN 1461:1999. The range also carries TÜV RHEINLAND Product Safety Type Approval (Cert No: B061161671001). All fittings are sized for 48.3mm OD scaffold tube and are designed for use with both 3.2mm and 4.0mm wall thickness scaffold tube.

Frequently Asked Questions

Q. What types of Q-Clamps are available?
A. The Q-Clamp range from Altrad Generation includes over 50 fittings covering all connection types and tube sizes. Types available include Short Tee joints (101-4), 4-Way Cross joints (126-4), and 2-Way Corner Inline fittings (127-4). You can browse the full range on the website or contact your nearest branch for the complete product list.

Q. What is a scaffold board clamp?
A. A scaffold board clamp, sometimes called a board retaining clamp, is a separate scaffold fitting that secures scaffold boards to scaffold tubes. Q-Clamps are a different product. They are key clamp tube fittings used to connect scaffold tubes for handrails, guardrails, industrial racking, and structural frameworks, not for securing scaffold boards.

Q. Are Q-Clamps compliant with British Standards?
A. Yes. Altrad Generation Q-Clamps are manufactured from galvanised blackheart malleable iron to BS6681, Grade B32-10. Galvanising meets BS EN 1461:1999.
