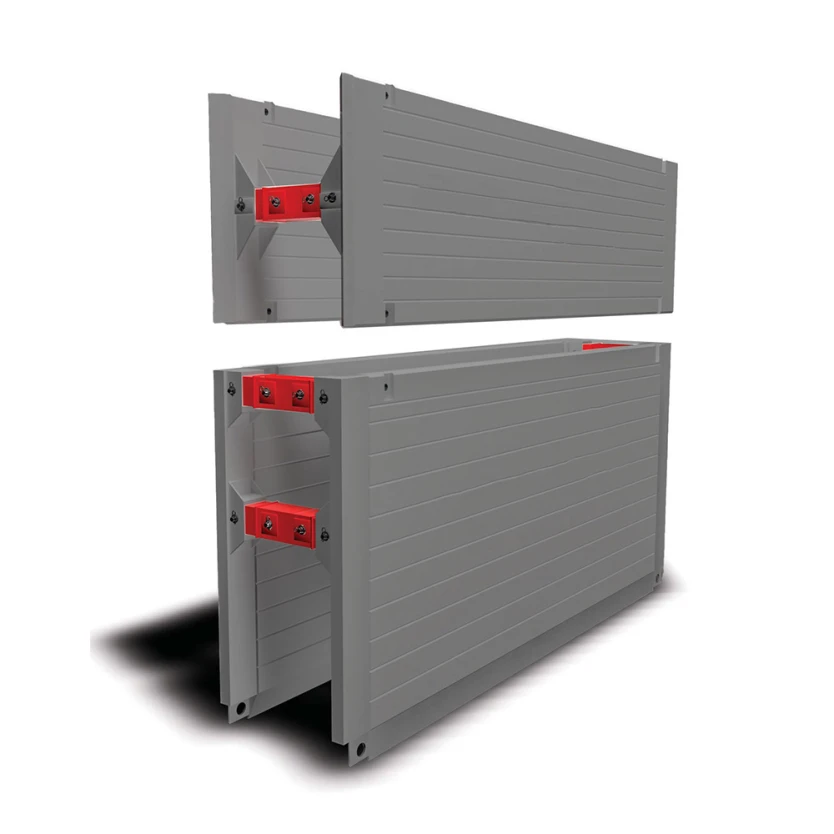

JVS Super Trench Box

The Super Trench Box is used to provide a safe working area below ground and ensure that the side walls of an excavation are continually supported. Standard Trench Boxes can be used in conjunction with other boxes, including manhole boxes. They are quick and easy to install. The Standard Trench Box can be used in trenches up to 6.1m deep with widths from 700mm to 3300mm. Up to two extension boxes can be added on top of the Standard Trench Box to achieve additional depth if needed.

Read full description

Select from product options

Product

Code

Weight

JVS Super Trench Box Base Unit Top Unit
Panel Length (mm) 5100 5100
Panel Height (mm) 2500 1800
Panel Thickness (mm) 100 100
External Trench Width (mm) 700 - 3300 700 - 3300
Internal Trench Width (mm) 500 - 3100 500 - 3100
Weight (kg) 3800 2280
Distance Between Struts (mm) 4620 4620
Clearance Below Strut (mm) 1500 -
Permissible SWL (kN/m²) 40 40

Super Trench Box

The Super Trench Box is used to provide a safe working area below ground and ensure that the side walls of an excavation are continually supported. Super Trench Boxes can be used in conjunction with other boxes, including Manhole Boxes. They are quick and easy to install. Up to two extension boxes can be added on top of the Super Trench Box to achieve additional depth if needed.

The Super Trench Box can be used in trenches up to 6.1m deep with widths from 700mm to 3300mm.

KEY FEATURES

  • Two-sided support

  • Used in conjunction with Manhole Boxes

  • Additional top boxes available

  • Quick and easy to install

  • Dig and Push method used

  • Edge Safe systems available

  • Ladder Access systems available

  • Additional Equipment Available

GET IN TOUCH WITH US:

If you would like more information about this product, please Contact Your Nearest Branch.

Download brochure

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
