Formwork for Slab Construction

Altrad Hire & Sales supplies formwork for slab construction in Ireland, with aluminium, timber beam and table systems. CC-4 suits solid or lightened slabs up to 90cm thick, Enkoflex adapts to irregular geometries, and VR Table is designed for large floor slabs with regular geometry.

Slab Formwork Systems

Altrad Hire & Sales offers three systems of formwork for slab construction. CC-4 is an aluminium modular system, Enkoflex is a timber beam system and VR Table is a table system built from pre assembled elements. Between them they cover solid and lightened slabs, irregular geometries and large floor slabs with regular geometry.

Altrad Hire & Sales supplies formwork for hire and sale. If you are looking at formwork hire for a slab, your local branch can tell you whether each system is stocked nearby.

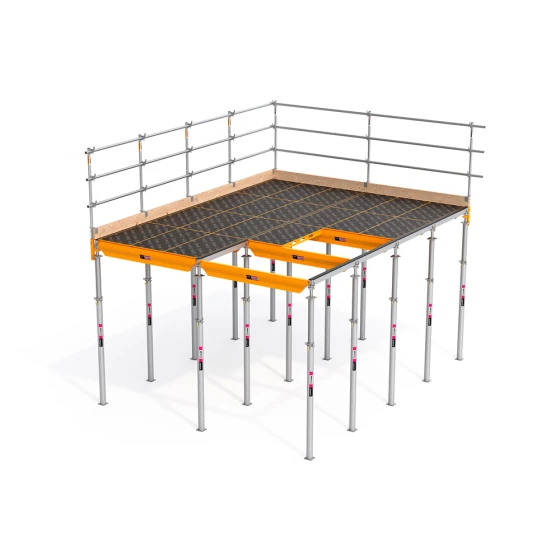

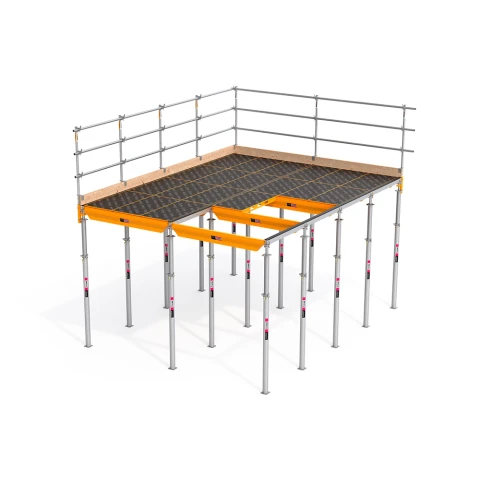

CC-4 Aluminium Modular Formwork

CC-4 is an aluminium modular formwork for solid and lightened slabs. The basic grid measures 2.32m x 1.5m, and you can configure other grids by combining different beams and transversals to suit your slab. Grid length comes in 2.32m or 1.57m, and the transversal sets the width at 1.5m or 0.75m.

You can use CC-4 for slabs up to 90cm thick, and the system has an impact of 0.29 props per m2. The beam rests on the drophead and then lifts up, so one worker can assemble the beam. The drophead also allows early recovery of beams, transversals and panels after 3 days, for reuse on the next pour.

Striking is simple and safe. The drophead lowers the elements by 15cm. An aluminium profile with a plastic and rubber top cover ensures water tightness with the panel and prevents possible concrete leaks.

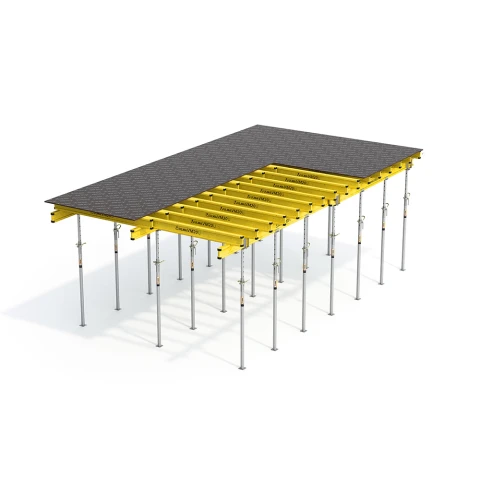

Enkoflex Timber Beam Slab Formwork

Enkoflex is a timber beam formwork you can adapt to any type of slab and height. You can use it for solid, lightened and inclined slabs, drop beams, infilling and cantilever beams. The beams are independent, which gives you great flexibility.

The system adapts to irregular geometries and to other formwork systems for easy infilling. Its components include primary and secondary beams, double heads and single heads, a safety handrail, props, a tripod and a board.

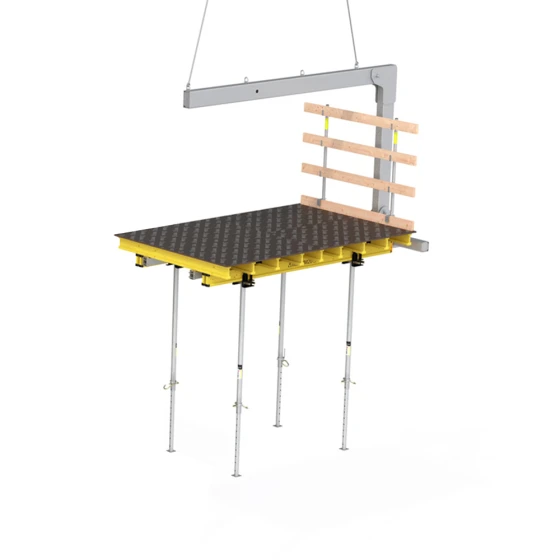

VR Table Modular Formwork

VR Table is table formwork designed especially for large floor slabs with regular geometry. Pre assembled elements make up the table, and the system is fast and safe to use and needs less labour. You can use it on buildings such as hotels, skyscrapers, shopping centres, hospitals and airports.

Choosing Formwork for Slab Work

Each system suits different slabs. CC-4 covers solid or lightened slabs up to 90cm thick. Enkoflex suits irregular geometries, inclined slabs and cantilever beams, and can be used with other formwork systems for infilling. VR Table suits large floors where the geometry is regular. Contact your local branch to discuss your requirements and check availability.

Contact your nearest Altrad Hire & Sales branch to discuss formwork for your slab project.

Frequently Asked Questions

Q. What are the types of formwork?
A. This page covers three types of formwork for slab construction. CC-4 is an aluminium modular formwork for solid and lightened slabs. Enkoflex is a timber beam formwork you can adapt to any type of slab and height. VR Table is table formwork made from pre assembled elements, designed especially for large floor slabs with regular geometry. Altrad Hire & Sales also supplies wall and column formwork, climbing formwork, bridge formwork, and props and shoring systems, which you can browse in the other Formwork and Falsework categories.
