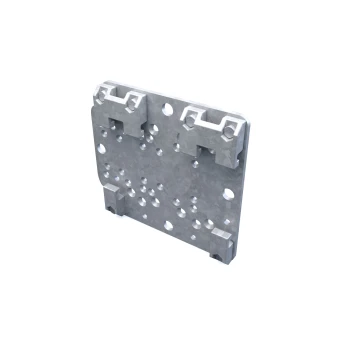

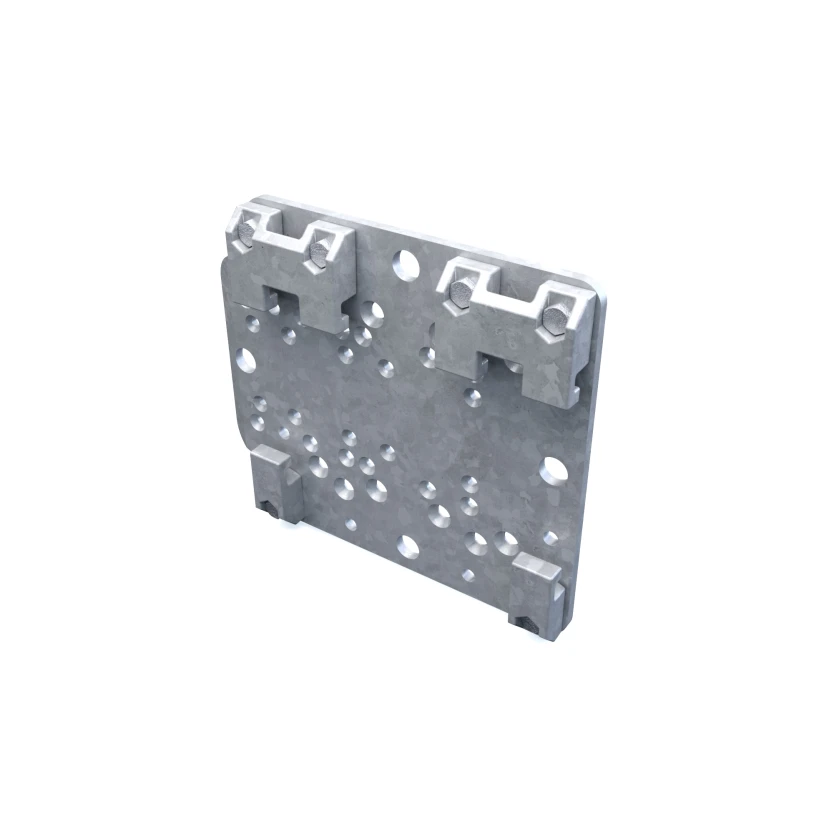

If you are searching for an rmd prop, check what you need to connect first. The GeoBrace 550 Straight Prop Connector connects Tubeshor 610, 460 and 320 prop accessories to GeoBrace 550 Extensions.
The load figures are clear. The maximum bearing load through the plate is 5000kN. The maximum vertical load component is 200kN on a pair of single bolt clamps and 400kN on a pair of double bolt clamps.
The connector measures 780mm x 880mm and weighs 163kg. If you have a trench shoring project, talk to your nearest Altrad Hire & Sales branch about the GeoBrace and Tubeshor equipment that suits it.
Key Features and Benefits
Clear connection: Connects Tubeshor 610, 460 and 320 prop accessories to GeoBrace 550 Extensions.
Bearing load: Maximum bearing load through the plate of 5000kN.
Single bolt clamps: Maximum vertical load component of 200kN on a pair of single bolt clamps.
Double bolt clamps: Maximum vertical load component of 400kN on a pair of double bolt clamps.
Size: 780mm x 880mm.
Weight: 163kg.
Frequently Asked Questions
Q. What does the GeoBrace 550 Straight Prop Connector connect?
A. It connects Tubeshor 610, 460 and 320 prop accessories to GeoBrace 550 Extensions.
Q. What loads can it take?
A. The maximum bearing load through the plate is 5000kN. The maximum vertical load component is 200kN on a pair of single bolt clamps and 400kN on a pair of double bolt clamps.
Q. How big and how heavy is it?
A. It measures 780mm x 880mm and weighs 163kg.
Contact your nearest Altrad Hire & Sales branch to discuss the GeoBrace 550 Straight Prop Connector for your project.
