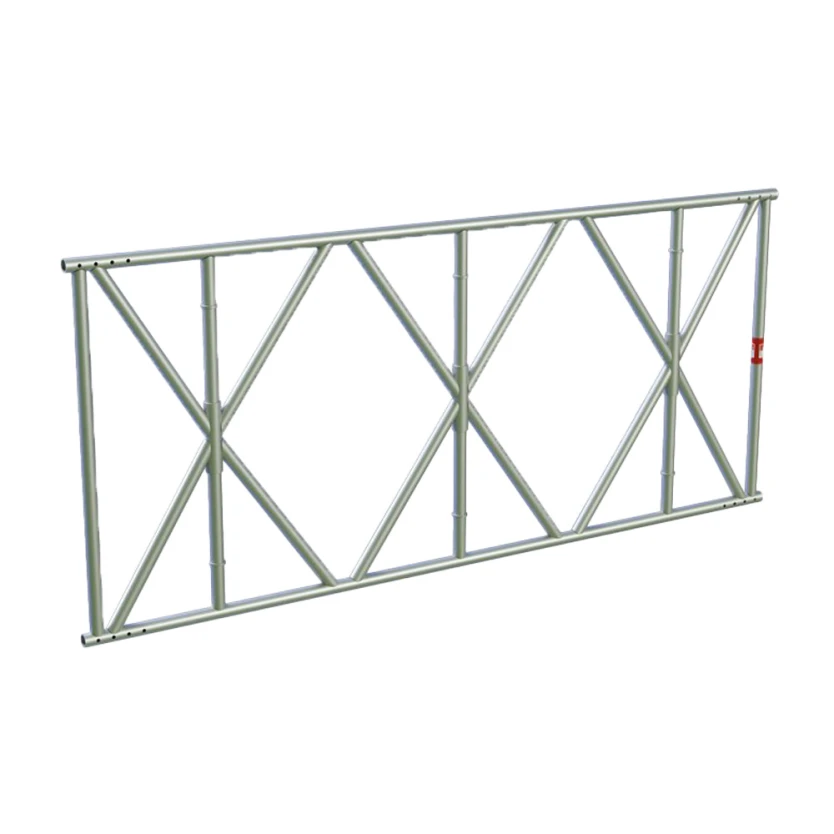

1330mm HD Asterix Alloy Beam

Unlike most other scaffold beams on the market today it is permissible to connect scaffold couplers to the posts of ASTERIX HD.

Read full description

Select from product options

Product

Code

Weight

Product Weight (kg) Width (mm) Length (mm) Height (mm)
HD Asterix Alloy Beam - 0.55m 6.33 - 550 1300
HD Asterix Alloy Beam - 1.0m 13.33 - 1000 1300
HD Asterix Alloy Beam - 2.0m 22.6 - 2000 1300
HD Asterix Alloy Beam - 3.0m 31.87 - 3000 1300
HD Asterix Alloy Beam - 4.0m 41.13 - 4000 1300
HD Asterix Alloy Beam 8 Hole Steel Spigot 1.44 - - -
HD Asterix Alloy Beam 60mm Spring Clip 0.025 - - -
0.55m x 1.33m HD Asterix Alloy Beam 6.33 - 550 -
1.0m x 1.33m HD Asterix Alloy Beam 13.33 - 1000 -
2.0m x 1.33m HD Asterix Alloy Beam 22.6 - 2000 -
3.0m x 1.33m HD Asterix Alloy Beam 31.87 - 3000 -
4.0m x 1.33m HD Asterix Alloy Beam 41.13 - 4000 -

Single Beam Lines, Massive Spans

Multiple beam lines omitted for most applications, greatly simplify lacing and bracing, massive reduction in fittings and labour.

Special Design, Quality Manufacture

Optimum arrangement of internal members for maximum capacity and consistent node spacing. All beams are closed end for stability and strength, spigot jointed.

Brace with System or Tube & Fittings

ASTERIX HD beam depth enables the use of system Uni Frames for both plan and section bracing, meaning large beams can be braced in minutes. Alternatively, traditional tubes and fittings can be used for both lacing and bracing. Unlike most other scaffold beams on the market today it is permissible to connect scaffold couplers to the posts of ASTERIX HD.

Permissable Moment – 102.2kNm

Permissable Shear – 32.6kN

Goods can be picked up from the nearest convenient location or delivered by our fleet. Prices are on application and tiered based on the distance and order volume between the branch the goods are transported from and the delivery site:

1 - 10 miles

11 - 25 miles

26 - 40 miles

40 miles+

Find your local branch

To find out if the product you're searching for is stocked nearby, enter your site's postcode, and then give us a call to discuss your requirements.
